    Fire Rated

    Self-Levelling Headpiece

    Self-Levelling Headpiece

    • Special Self-Levelling / slope corrector headpieces are available for MetalPad EX range which connects securely onto the headpiece and gives a slope correction up to 5° in all directions.
    • The lugged headpiece holds the tiles / slabs securely in place and finds its own natural position to create a flat upper surface.
    • If the headpiece is inverted the lugs can wrap around a number of the aluminium rails available from Wallbarn.
    • There are no non-metallic elements on this Slope Corrector so it complies with a Class A1 fire rating.

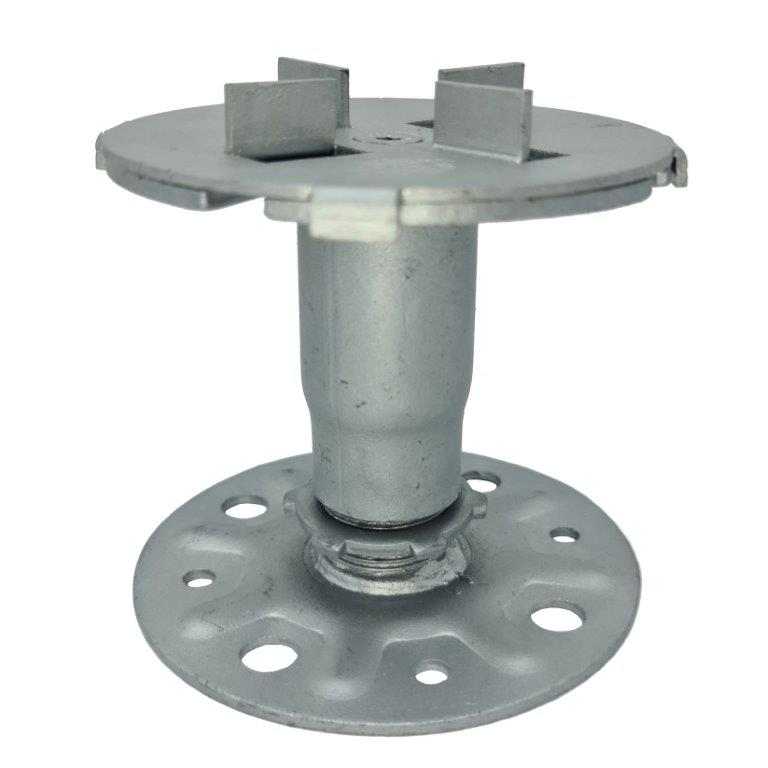

    Paving Headpiece

    Paving Headpiece

    • Paving Headpieces fit directly on to the MetalPad Ex Pedestal without the need for mechanical fixing.
    • The lugged headpiece holds the tiles / slabs securely whilst also providing a gap for drainage between each of the tiles or paving slabs.
    • The headpiece is made of galvanised steel and coated in zintec to keep it free from rust and corrosion.
    • These Headpieces meet Class A fire rating
    • They are available with different lug positions that make positioning tiles easier for any layout such as brickwork or stretcher bond.

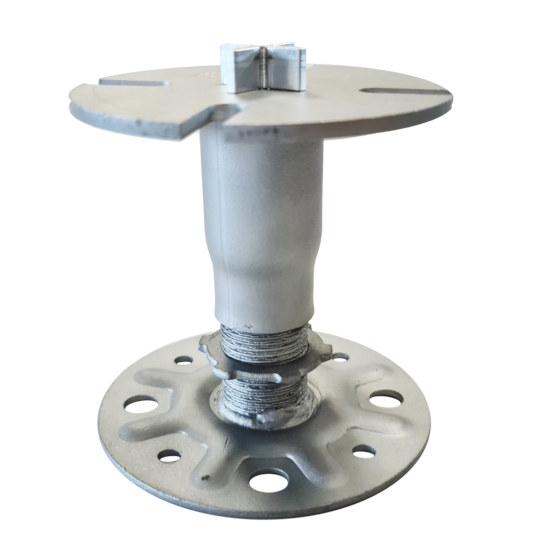

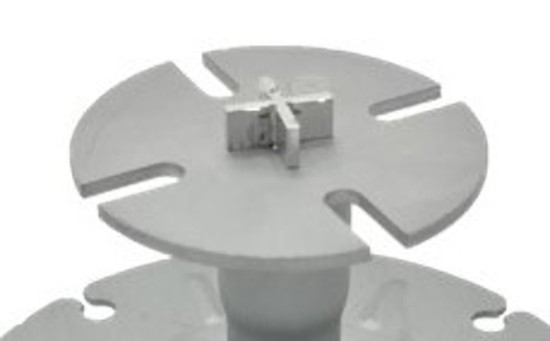

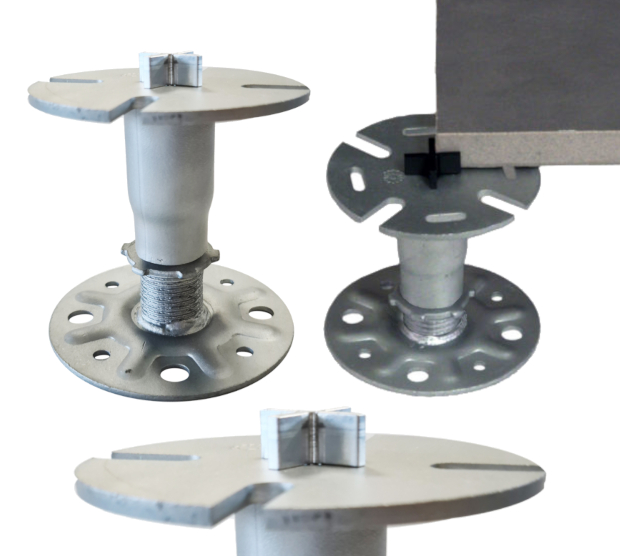

    Crucifix Headpiece

    Crucifix Headpiece

    • Crucifix Headpieces fit directly on to the MetalPad Ex Pedestal without the need for mechanical fixing.
    • The lugged headpiece holds the tiles / slabs securely whilst also providing a gap for drainage between each of the tiles or paving slabs.
    • The headpiece is made of aluminium to keep it free from rust and corrosion.
    • These Headpieces meet Class A fire rating
    • Provides a simple and cost effective option when using the MetalPad Ex for paving

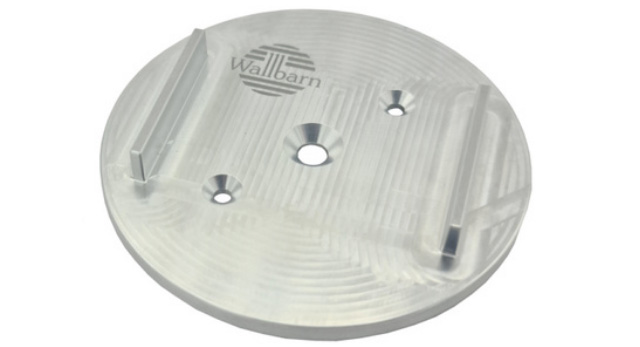

    Rail Headpiece

    Rail Headpiece

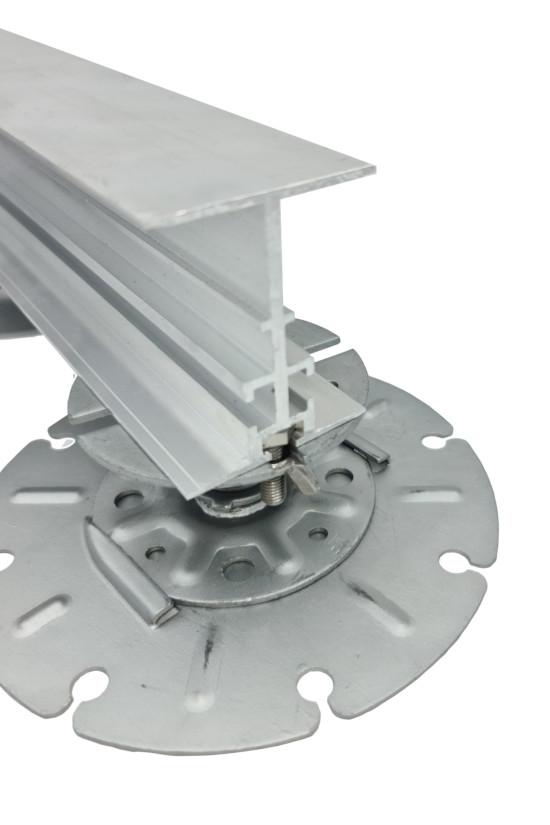

    • The Rail Headpiece fits on to the MetalPad Ex Pedestal and secured by a central screw.
    • The headpiece holds all Wallbarn aluminium rails/joists to produce a total Class A Substructure
    • The headpiece is made of high grade aluminium to keep it free from rust and corrosion.
    • The Headpiece meet Class A fire rating

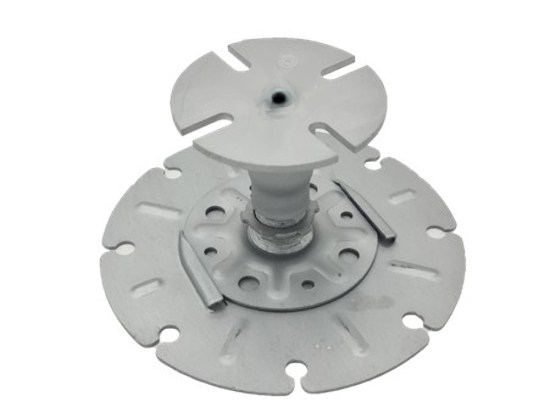

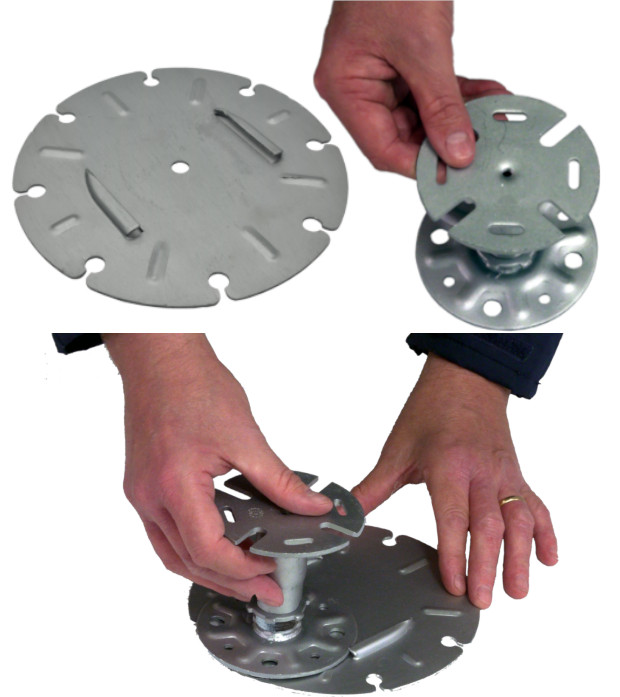

    Spreader Plate

    Spreader Plate

    The standard baseplate for MetalPad EX is 100mm diameter which is sufficient for applications onto hard sub-surfaces such as concrete. However, if users need to mount pedestals directly onto softer surfaces such as insulation or waterproof membranes then an additional spreader plate can be used.

    The pedestal will slide into the slots on the top side of the spreader plate and lock into place. The spreader plate is 185mm diameter with a smooth underside to diffuse and distribute the weight effectively.

    Connectors

    Connectors

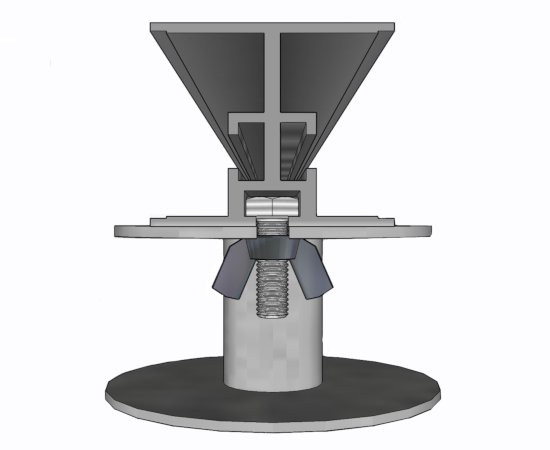

    Connecting headpieces or aluminium rails is simple and is done by either clipping on, securing with a screw or secured with one of M8 wingnut & bolt kits.

    The MetalPad Ex Pedestal is a versatile pedestal suited to all fire rated decking or paving systems

    MaterialMild Steel SheetEN 10152
    Pedestal coatingZintec 200 corrosion protection coating
    Threaded StemMild Steel class 4:8
    Fire ClassificationClass A1EC Decision 96/603/EC and BS EN 13501-1:2018
    Building Standards ComplianceApproved Document B (amended)2022
    British Standard (balcony construction)BS 8579
    Use / PurposeSuspended decking and paving projects
    Height RangeSP-MET-EX-026-ZClass A MetalPad - EX (flat head) 26-35mm
    SP-MET-EX-030-ZClass A MetalPad - EX (flat head) 30-40mm
    SP-MET-EX-040-ZClass A MetalPad - EX (flat head) 40-50mm
    SP-MET-EX-050-ZClass A MetalPad - EX (flat head) 50-70mm
    SP-MET-EX-060-ZClass A MetalPad - EX (flat head) 60-90mm
    SP-MET-EX-075-ZClass A MetalPad - EX (flat head) 75-115mm
    SP-MET-EX-090-ZClass A MetalPad - EX (flat head) 90-140mm
    SP-MET-EX-110-ZClass A MetalPad - EX (flat head) 110-185mm
    SP-MET-EX-135-ZClass A MetalPad - EX (flat head) 135-210mm
    SP-MET-EX-185-ZClass A MetalPad - EX (flat head) 185-260mm
    SP-MET-EX-200-ZClass A MetalPad - EX (flat head) 200-275mm
    SP-MET-EX-235-ZClass A MetalPad - EX (flat head) 235-310mm
    SP-MET-EX-250-ZClass A MetalPad - EX (flat head) 250-325mm
    SP-MET-EX-300-ZClass A MetalPad - EX (flat head) 300-375mm
    SP-MET-EX-350-ZClass A MetalPad - EX (flat head) 350-425mm
    SP-MET-EX-400-ZClass A MetalPad - EX (flat head) 400-475mm
    SP-MET-EX-450-ZClass A MetalPad - EX (flat head) 450-525mm
    SP-MET-EX-500-ZClass A MetalPad - EX (flat head) 500-575mm
    SP-MET-EX-550-ZClass A MetalPad - EX (flat head) 550-625mm
    SP-MET-EX-600-ZClass A MetalPad - EX (flat head) 600-675mm
    AccessoriesSP-MET-EX-BASE-ZClass A MetalPad - EX Spreader Baseplate Ø 185mm
    SP-MET-EX-BOLT-HAM-ZHammerhead Bolt/Screw for peds & rails
    SP-MET-EX-HEAD-CRU-ZClass A MetalPad - EX Lug Head Crucifix
    SP-MET-EX-HEAD-EDGE-PLATE-ZClass A MetalPad - EX Paving Starter / End Plate
    SP-MET-EX-HEAD-PLATE-ZClass A MetalPad - EX Paving Lug Headpiece Plate
    SP-MET-EX-HEAD-SL-ZClass A MetalPad - EX Self Levelling Headpiece
    SP-MET-EX-SCREW-1-ZClass A MetalPad Ex Paving Lug Headplate Screw
    SP-MET-EX-SCREW-RAIL-BL-ZClass A MetalPad - Ex Screw for Rail Black
    SP-MET-EX-START-CLIP-ZClass A MetalPad - EX Starter Fixing Clip
    SP-MET-EX-BASE-ZClass A MetalPad - EX Spreader Baseplate Ø 185mm
    Headpiece95mm diameter with central hole 6mm diameter
    4 x connection slots 10mm x 22mm
    Base Plate100mm diameter Circular Base plate
    4 x drilled drainage holes 10mm diameter
    4 x drilled fixing holes 6mm diameter
    Lug InterfaceFor use with Wallbarn Aluminium Profiled Rail
    For use with paving positioning lug made from anodized aluminium
    Weight ToleranceStandard weight tolerance per unit > 2,000kg
    DurabilityMetalPad EX is manufactured for long-term performance and resistance to corrosion, exposure to elements and to UV rays
    WarrantyLimited warranty 15 years
    Life span 50 years
    ToxicityThese products are not classified as toxic
    Fire ratingRated Class A according to BS EN 13501-1:2018 and EC Decision 94/61 1/EC

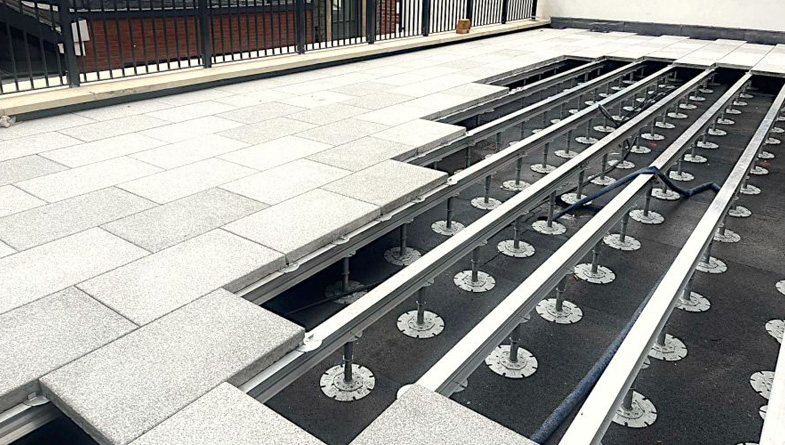

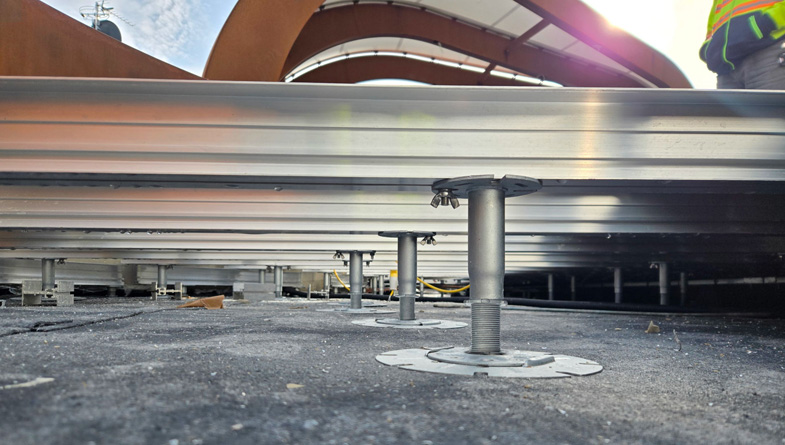

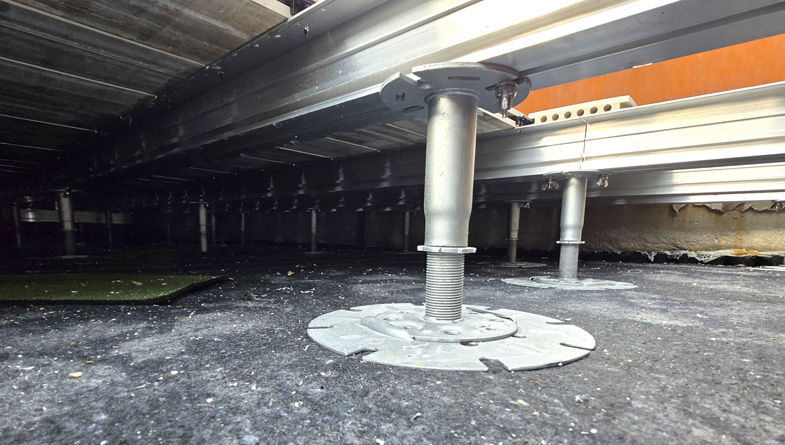

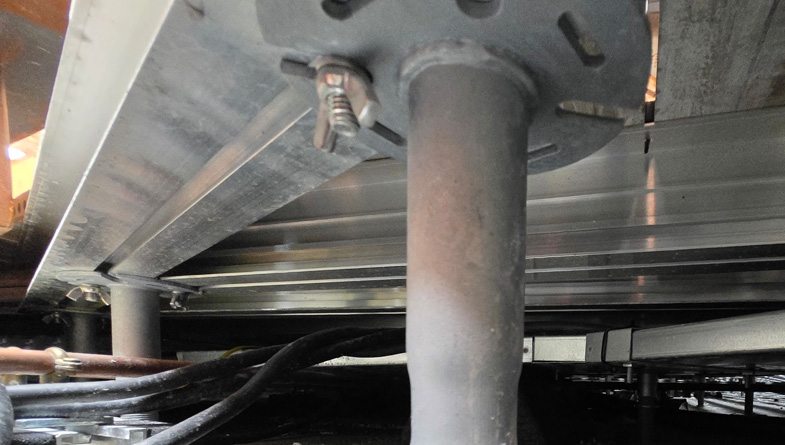

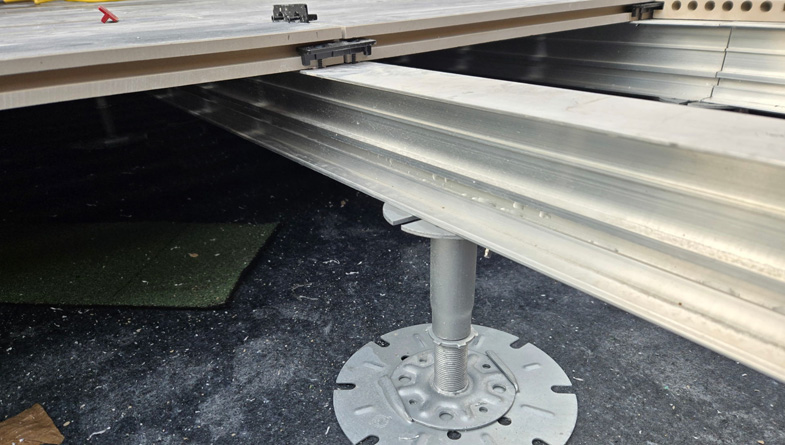

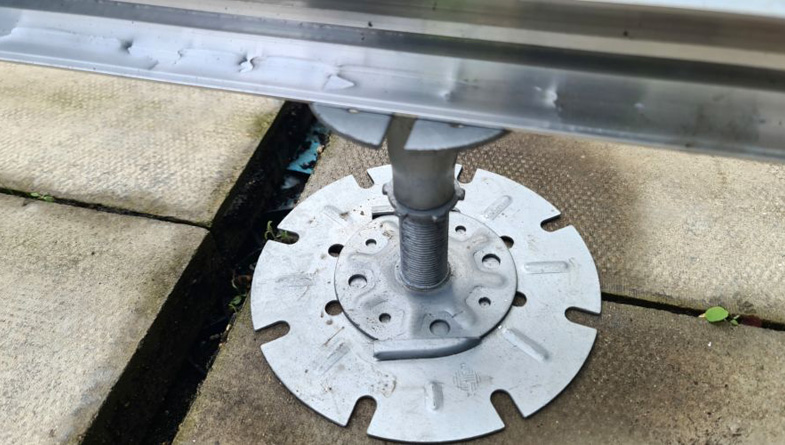

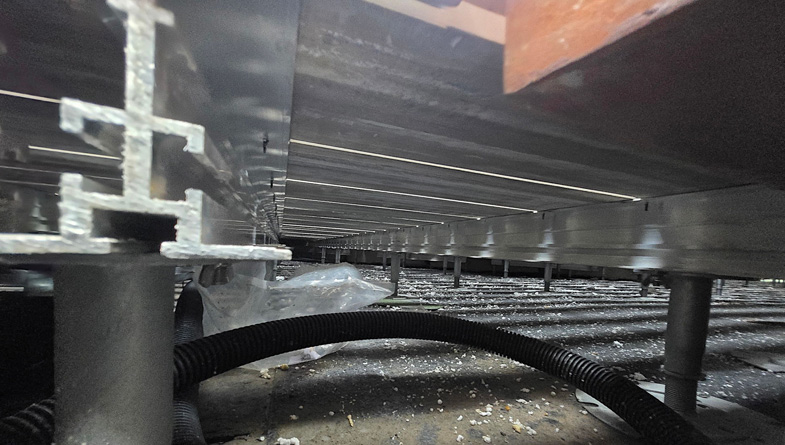

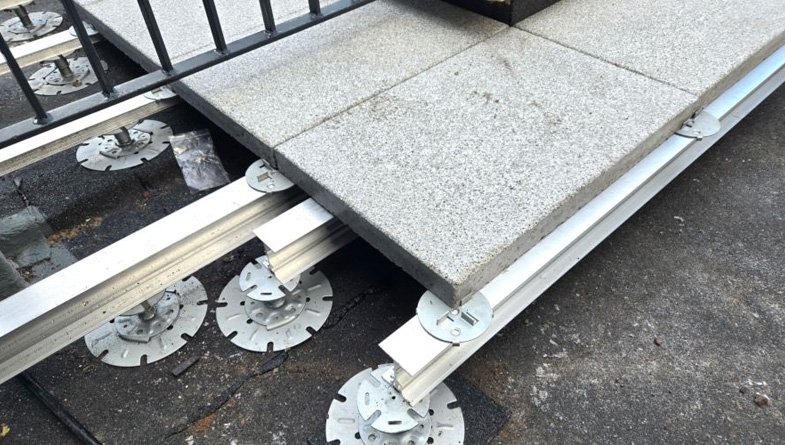

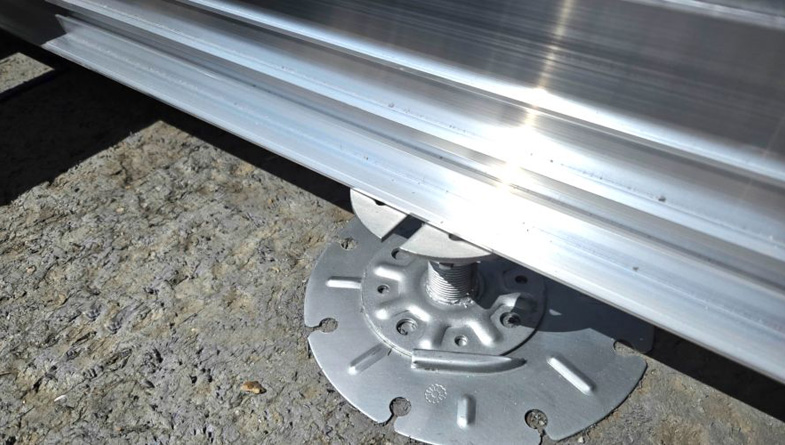

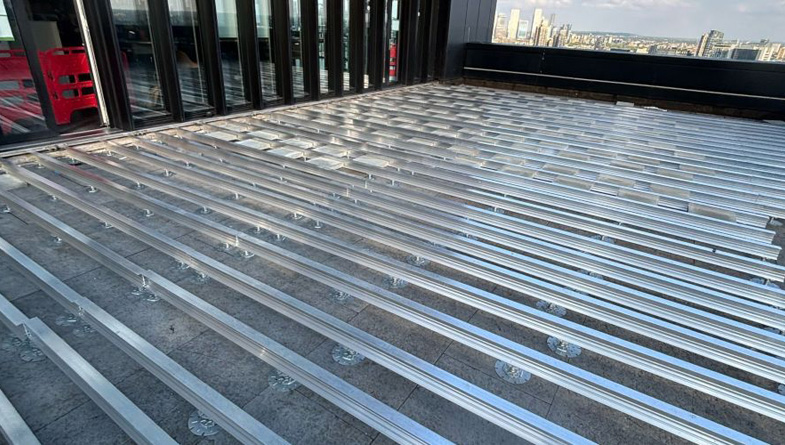

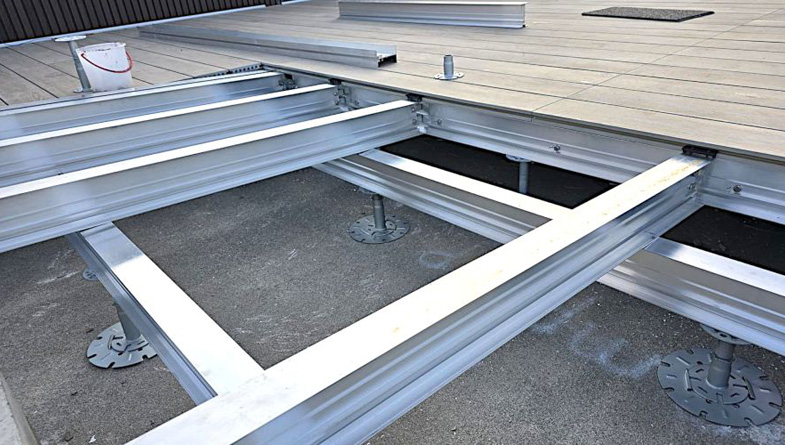

    Metalpad Ex Gallery
