Protection & Drainage

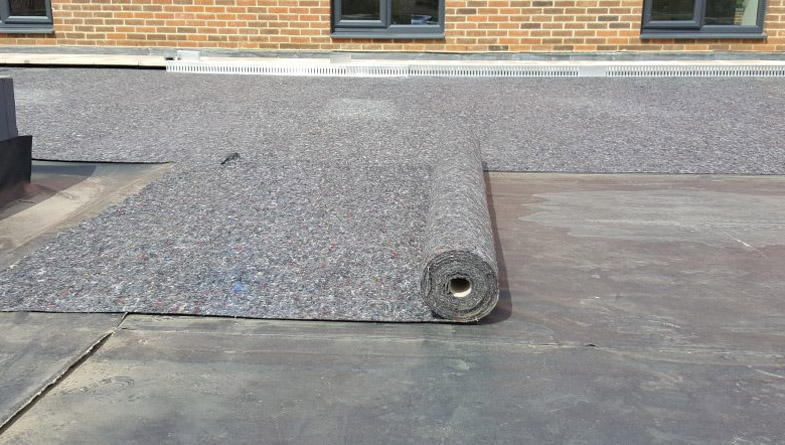

20160726_104007

Geotextile

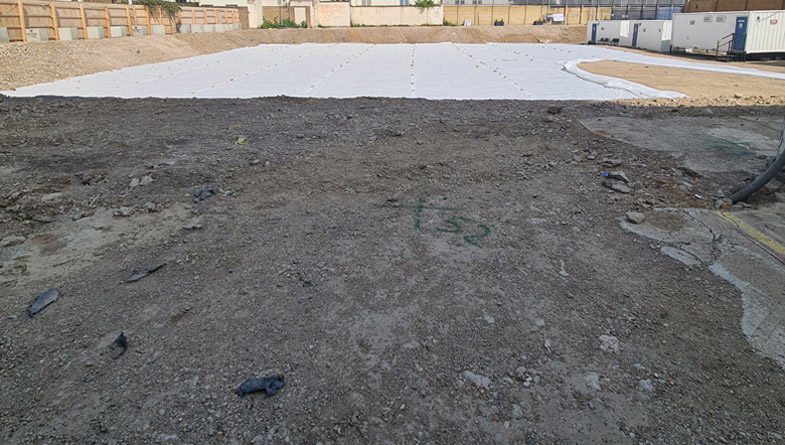

Geotextile Fabrics are used to provide effective separation and protection between soil and hardcore layers whilst allowing the flow of moisture. The geotextile fabrics can act as a strong barrier to particles whilst still allowing free drainage. This prevents soil from slumping in constructions such as artificial islands, embankments and cuttings.

Geotextile fabrics also prevent the ingress of particles into drains and outlet pipes. Often underground permeable pipes will be wrapped in geotextile to prevent them becoming clogged up over time.

Virgin fibre polypropylene

Virgin fibre polypropylene

High tenacity non-woven Virgin Fibre Polypropylene geotextile fabrics for heavy duty applications.

Permeable membrane allows water flow but ensures particles are kept in place.

Main characteristics:

  • High strength
  • Superior production techniques
  • Highest quality raw material
  • No staples or glues
  • Uniform and consistent strength throughout the roll
  • No weak spots
  • High tensile strength
  • High puncture strength
  • High temperature resistance
  • Screws can pass through fabric without furring up

Two types of Virgin Fibre Polypropylene geotextile available, PPST high tenacity fabric and PPEXT.



Jumbo rolls

6 metre wide rolls are ideal for road and rail construction. Faster and stronger drainage / stabilisation layer. Less individual rolls mean fewer joints:

  • Less joints to seal means labour saving
  • Less overlap means less material wastage
  • Fewer joints means a stronger layer

If you are unsure what to use just speak to a member of the team.

Recycled polyester

Recycled polyester

Wallbarn supplies two ranges of nonwoven RECYCLED POLYESTER geotextile fabrics, offering environmental sustainability benefits as well as cost savings.

Available:

  • densities from 100gsm up to 1500gsm
  • roll sizes from 1m to 6m wide

A cost-effective solution for soil stabilisation, filtration projects and lower level protection. They have a lower tensile strength than virgin fibre polypropylene fabrics and are used on installations with less ground movement and lower abrasion force.

Two types of recycled polyester fabric:

  • PEIT – suitable for lower level protection and separation
  • PECT – suitable for separation and filtration



Our PECT recycled polyester fabric is ideal for green roof construction as a separation and filtration layer. between drainage membranes and soil substrates. Please see our green roof page for more details.

If you are unsure what to use just speak to a member of the team.

PPEXT Polypropylene - nonwoven virgin fibre - second strength geotextile fabric

Physical Properties test methodunit             tolerance
Weightg/m²100120150200250300400500600800100012001500±10%
ThicknessEN ISO 9863-1mm0.70.811.31.61.82.53.33.64.45.578.5±20%
Mechanical Properties
Tensile StrengthmdEN ISO 10319kN/m22.73.54.5691012182430354015%
Tensile StrengthcmdEN ISO 10319kN/m2.53.245.58111418223240455015%
Elongation at max loadmdEN ISO 10319%70707070808080808090909595±25%
Elongation at max loadcmdEN ISO 10319%80808080858585909095100100100±25%
Energy indexEN ISO 10318kJ/m²0.81.11.41.92.94.156.48.513.316.619.521.9±25%
Static puncture resistanceEN ISO 12236kN0.40.50.90.91.31.51.82.53.64.8681010%
Dynamic puncture resistance (cone drop test)EN ISO 13433mm>50>5036282218141062100+25%
Pyramid puncture resistanceEN 14574Nn/an/an/a15020030034040050070011001400160020%
Hydraulic properties
Permeability normal to the planeEN ISO 11058mm/s110100807050352520202020202030%
In-plane flow capacityEN ISO 1295810-3l/ms0.60.81.21.822.22.63.54.55.366.3730%
Weathering resistanceEN 12224Passes EN 12224 weathering test. It is highly recommended that the geotextile is covered within 15 days from the day of installation. The material can be exposed to sunlight with a degredation of the mechanical properties depending on season.
Product CompositionMade from polypropylene virgin fibre. Specific weight of polymer is 0.91 kg/dm3 . Raw material is staple fibres, produced through needlepunching and calandering. Melting point is 165-175 °C. The material is produced according the quality management system of EN ISO 9001:2008. It fulfills the requirement of European regulations related to construction products as per 1213-CPR 3269.
Oxydation resistanceEN ISO 13438Forecast minimum durability of 5 years for all non-reinforcement application in natural grounds with 4


PEI Recycled Polyester geotextile - nonwoven polyester fabric

Physical Properties test methodunit             tolerance
Weightg/m²150200250300350400500600700800100012001500±10%
ThicknessEN ISO 9863-1mmmm0.91.11.31.61.751.92.22.833.544.56±20%
Mechanical Properties
Tensile StrengthmdEN ISO 10319kN/m1.21.822.52.83.24.25.566.57.5132010%
Tensile StrengthcmdEN ISO 10319kN/m1.21.822.73.245.27.58910.5162510%
Elongation at max loadmdEN ISO 10319%50505050505060707080808080±30%
Elongation at max loadcmdEN ISO 10319%60606060606070808090909090±30%
Energy indexEN ISO 10318kJ/m²0.30.50.60.70.811.52.42.63.33.86.29.6±20%
Static puncture resistanceEN ISO 12236kN0.20.30.40.50.60.70.81.21.41.82.22.8410%
Dynamic puncture resistance (cone drop test)EN ISO 13433mm>50>504540302016622000+25%
Pyramid puncture resistanceEN 14574Nn/an/an/a10015018020025027030050070080020%
Hydraulic properties
Permeability normal to the planeEN ISO 11058mm/s110100806050403025252020202030%
In-plane flow capacityEN ISO 1295810-3l/ms1.62.12.32.733.2577899930%
Opening sizeEN ISO 12956µm65605555554545353535303030±30%
Durability properties
Weathering resistanceEN 12224Passes EN 12224 weathering test. It is highly recommended that the geotextile is covered within 15 days from the day of installation. The material can be exposed to sunlight with a degredation of the mechanical properties depending on season.
Product CompositionMade from polyester white fibre. Specific weight of polymer is 0.38 kg/dm3 . Raw material is staple fibres, produced through needlepunching and calandering. The material is produced according the quality management system of EN ISO 9001:2008. It fulfills the requirement of European regulations related to construction products as per 1213-CPR 3269.
Oxydation resistanceEN ISO 13438Forecast minimum durability of 5 years for all non-reinforcement application in natural grounds with 4


PEC (multi-coloured) Recycled Polyester geotextile fabrics

Physical Properties test methodunit             tolerance
Weightg/m²150200250300350400500600700800100012001500±10%
ThicknessEN ISO 9863-1mmmm11.21.41.61.822.32.62.93.344.56.4±20%
Mechanical Properties
Tensile StrengthmdEN ISO 10319kN/m11.622.42.83.245.46.7810121510%
Tensile StrengthcmdEN ISO 10319kN/m11.62.12.533.457.4910.513.5152010%
Elongation at max loadmdEN ISO 10319%50505050505060607070808090±30%
Elongation at max loadcmdEN ISO 10319%60606060606060607070808090±30%
Energy indexEN ISO 10318kJ/m²0.30.40.60.70.80.91.41.92.73.24.75.47.9±20%
Static puncture resistanceEN ISO 12236kN0.20.30.40.50.60.81.21.82.22.64.25610%
Dynamic puncture resistance (cone drop test)EN ISO 13433mm>504640363224141086220+20%
Pyramid puncture resistanceEN 14574Nn/a200300400450500600800950110015001700200020%
Hydraulic properties
Permeability normal to the planeEN ISO 11058mm/s9090706060503030252010101030%
In-plane flow capacityEN ISO 1295810-3l/ms222333.2577899930%
Opening sizeEN ISO 12956µm65605555554545353535303020±30%
Durability properties
Weathering resistanceEN 12224Passes EN 12224 weathering test. It is highly recommended that the geotextile is covered within 15 days from the day of installation. The material can be exposed to sunlight with a degredation of the mechanical properties depending on season.
Product CompositionMade from multicoloured polyester recycled fibre. Specific weight of polymer is 0.38 kg/dm3 . Raw material is staple fibres, produced through needlepunching and calandering. The material is produced according the quality management system of EN ISO 9001:2008. It fulfills the requirement of European regulations related to construction products as per 1213-CPR 3269.
Oxydation resistanceEN ISO 13438Forecast minimum durability of 5 years for all non-reinforcement application in natural grounds with 4


PPS Polypropylene geotextile - high tenacity nonwoven virgin fibre fabric

Physical Properties test methodunit             tolerance
WeightEN ISO 9864g/m²100150200250300350400500600800100012001500±10%
ThicknessEN ISO 9863-1mm0.651.01.31.51.61.82.53.04.05.56.57.07.5±20%
Mechanical Properties
Tensile StrengthmdEN ISO 10319kN/m7.012.016.020.025.027.030.035.040.050.060.070.085.010%
Tensile StrengthcmdEN ISO 10319kN/m7.012.016.020.025.030.034.040.050.080.090.0105.0140.010%
Elongation at max loadmdEN ISO 10319%55556065657070808080808080±30%
Elongation at max loadcmdEN ISO 10319%60606570707070808080808080±30%
Energy indexEN ISO 10318kJ/m²2.03.55.06.88.410.011.215.018.026.030.035.045.0±20%
Static puncture resistanceEN ISO 12236kN1.21.92.43.04.04.55.56.58.010.013.014.018.010%
Dynamic puncture resistance (cone drop test)EN ISO 13433mm382620141086420000+20%
Pyramid puncture resistanceEN 14574Nn/an/a200280330340350500700100013001600220020%
Hydraulic properties
Permeability normal to the planeEN ISO 11058mm/s125100907565503530252015151530%
In-plane flow capacityEN ISO 1295810-3l/ms0.81.62.12.32.52.73.25.07.88.59.09.09.030%
TrasmissivityEN ISO 10318l/m s0.81.62.12.33.25.08.59.09.0
Opening sizeEN ISO 12956μm12090806050505050504040040±30%
Durability properties
Weathering resistanceEN 12224Passes EN 12224 weathering test. It is highly recommended that the geotextile is covered within 30 days from the day of installation. The material can be exposed to sunlight for a maximum of 4 months with a degredation of the mechanical properties
depending on season.
Product CompositionMade from virgin fibre polypropylene, UV stabilised. Specific weight of polymer is 0.91 kg/dm3 . Raw material is staple fibres, produced through needlepunching and calandering. Melting point is 165-175 °C. Fibre diamater is 25-30 μm. The material is
produced according the quality management system of EN ISO 9001:2008. It fulfills the requirement of European regulations related to construction products as per 1213-CPR 3269.
Oxydation resistanceEN ISO 13438Forecast minimum durability of 25 years for every application in natural grounds with 4
The values given are an average obtained in our laborotories and in official testing insitutes

The confidence level is 95%

We reserve the right to make changes at any time without notice
