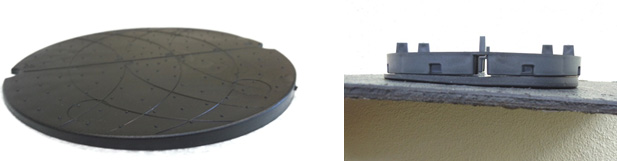

SLOPE CORRECTORS FOR FIXED HEIGHT PAVING PADS are circular wedge shaped discs made from PVC.
They are loose fitted beneath the pad to take out the fall of the roof-deck and remove the angle which the pads are sitting. They slope from a thickness of 8mm at the highest point down to 3mm at the lowest point. They are very effective as a shock absorber and membrane protection when used with plastic paving pads.
They are lightweight, flexible, robust and easy to install.
They can be used with 5mm PVC discs for paving & decking, the 7mm PVC discs for paving & decking, the 9mm rubber paving support pads for paving slabs and the 14mm & 17mm Plastic Fixed Height Support Pads.
TECHNICAL DATA | |
MATERIAL | PVC |
WEIGHT TOLERANCE / BEARING CAPACITY | 8,000kg |
OUTER DIAMETER | 150mm |
THICKNESS | 3-8mm |
APPEARANCE | Flat disc both sides |
