    Pedestals

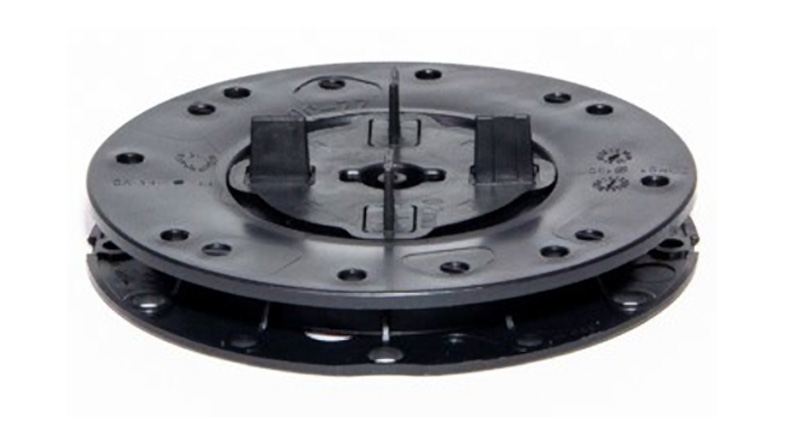

    minipads4

    Have an ultra-low threshold? Try our Minipads range. Our time-saving alternative to fixed height pads and perfect for overlaying and retro-fitting. Available from 10mm to 40mm in just three products:

    • 10-25mm
    • 22-30mm
    • 28-40mm

    Product benefits:

    • Achieve precise, split-millimetre accuracy in the height of the pedestal to accommodate tiny changes in the level.
    • Designed for use when working with very tight spaces
    • Thread allows 5mm of change to the level
    • Further 5mm extension plate which is fitted to the bottom of the pedestal
    • 5mm extension plate turns 10-15mm pedestal into a 15-20mm fully adjustable pedestal for use in tight spaces
    • Special handle grips allow installers to adjust the height whilst slab is in situ – saves constantly lifting the slab to change the height

    NBS Source

    BIM Library

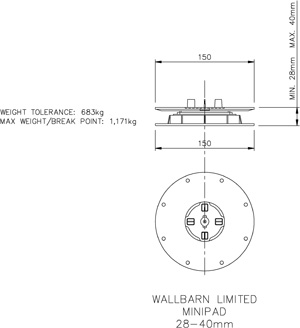

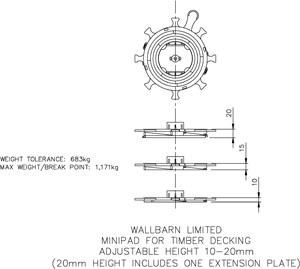

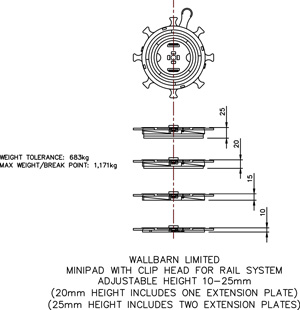

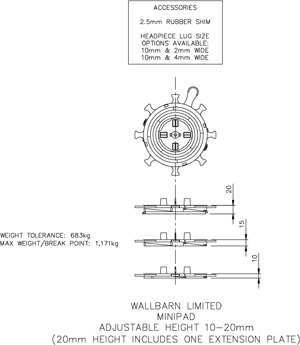

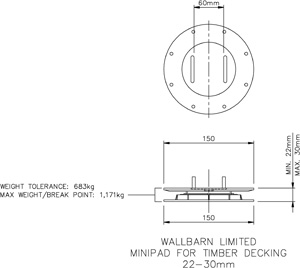

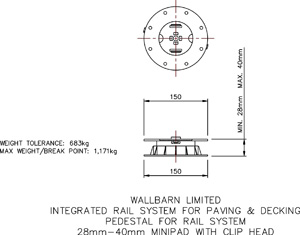

    CAD Drawings - Minipads

    HEIGHTDIAMETER OF HEADDIAMETER OF BASESTANDARD LUG DIMENSIONSWEIGHT TOLERANCE*MAXIMUM LOAD*TEMPERATURE TOLERANCE
    10-25mm150mm150mm15mm (height)683kg1,171kg-40°C to +75°C
    22-30mm150mm150mm15mm (height)683kg1,171kg-40°C to +75°C
    28-40mm150mm150mm15mm (height)683kg1,171kg-40°C to +75°C
    * Weight tolerance = the point at which the pedestal ends its normal behaviour and starts to deform (according to CATAS test 179112/1)
    Maximum load = the point at which pedestals start to collapse in laboratory tests (according to CATAS test 179112/1)

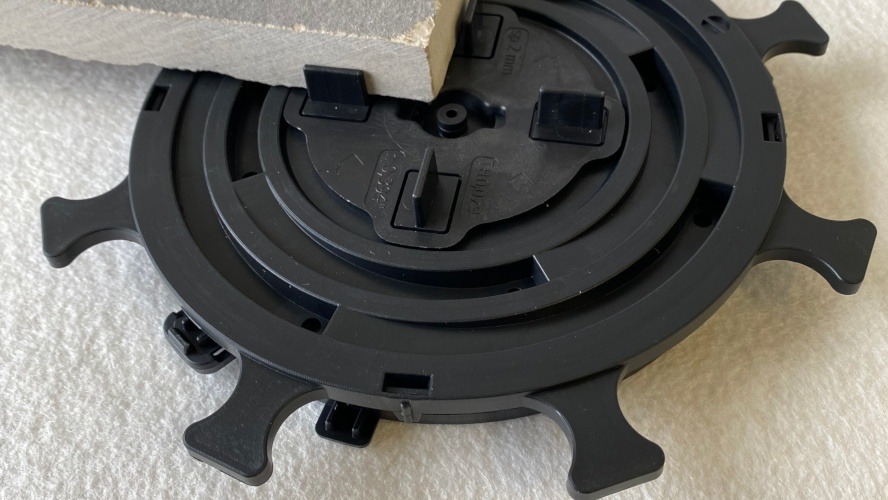

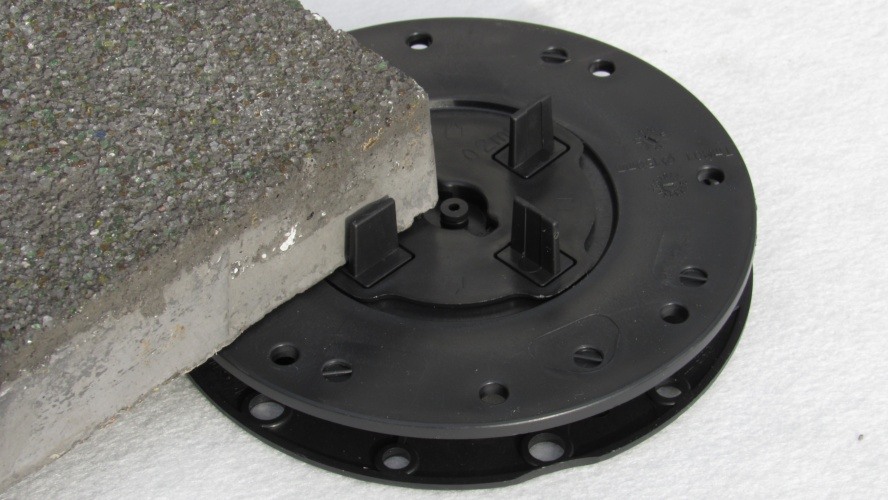

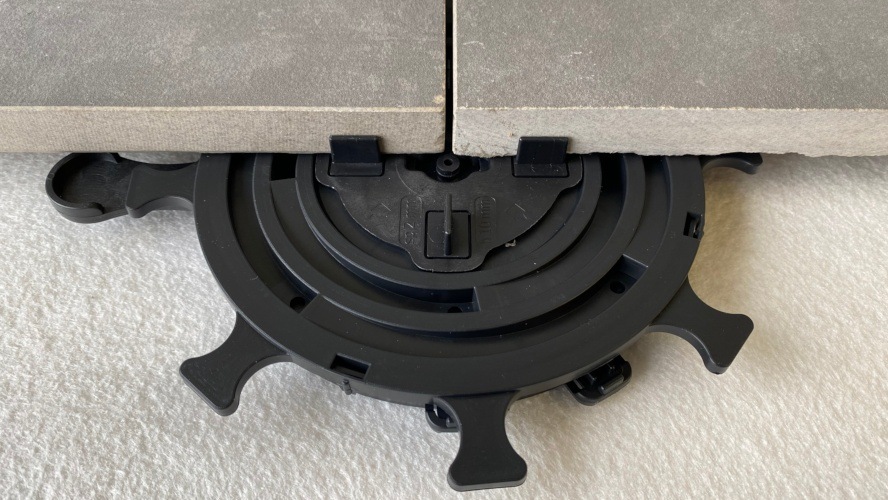

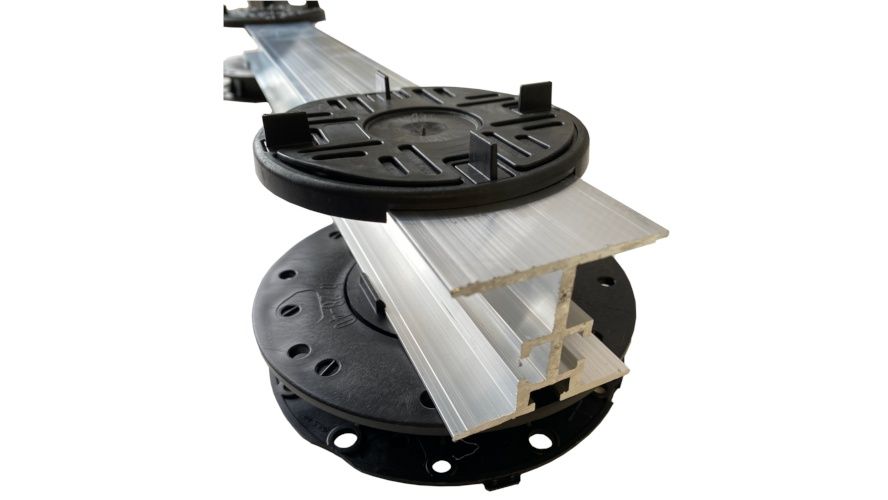

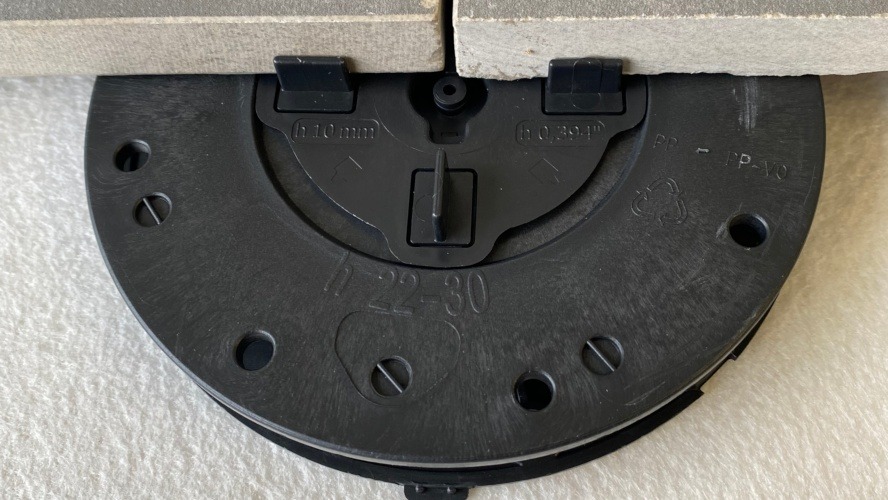

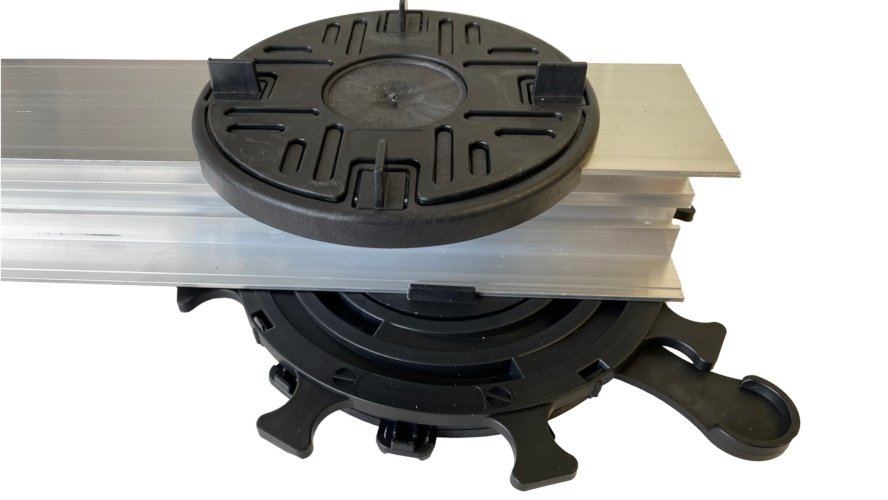

    MiniPad Gallery
