Class A2-s1, d0 Fire Rated Decking Pedestals
Non-combustible, fully adjustable, Class A2-s1, d0 pedestal specially designed for high-rise balconies, terraces and flat roofs.
Key Benefits
- Classified A2-s1,d0 in accordance with BS EN 13501-1:2018
- Complies to BS EN ISO 1716:2018
- Physically tested in accordance with procedure specified in BS EN 13823:2020
- Designed for exterior applications
- Made from 100% thick galvanised steel
- No plastic or rubber components
- Self-levelling headpiece up to 5% movement in all directions
- Solid stem for superior weight tolerance
- Over 2 tonnes weight tolerance per pedestal
- 150mm diameter circular base plate
- Millimetre-precise height adjustment
- Bespoke headpiece for decking
Heights range from 25mm up to 300mm.
Close
Product Info
Other features:
- Galvanised steel for long-term exterior applications
- 150mm diameter base plate with smooth underside prevents point loading
- Circular base plate ensures adequate weight distribution and proper stability
- Self-levelling headpiece up to 5% movement in all directions*
- Rounded profiles on baseplate and headpiece – no sharp edges
- Solid, not hollow, stem for high weight tolerance
- Drainage holes in baseplate prevent prevent water stagnation and rusting
- Fixing holes in baseplate for mechanical fixing if required
- Height can be adjusted when decking is in position
- Limit switch on the stem to prevent the pedestals unwinding completely
For further information or to discuss a project, speak to a member of our technical team. Call us on 020 8916 2222 or send us a message here.
* self-levelling on pedestals 53mm and above
Decking applications

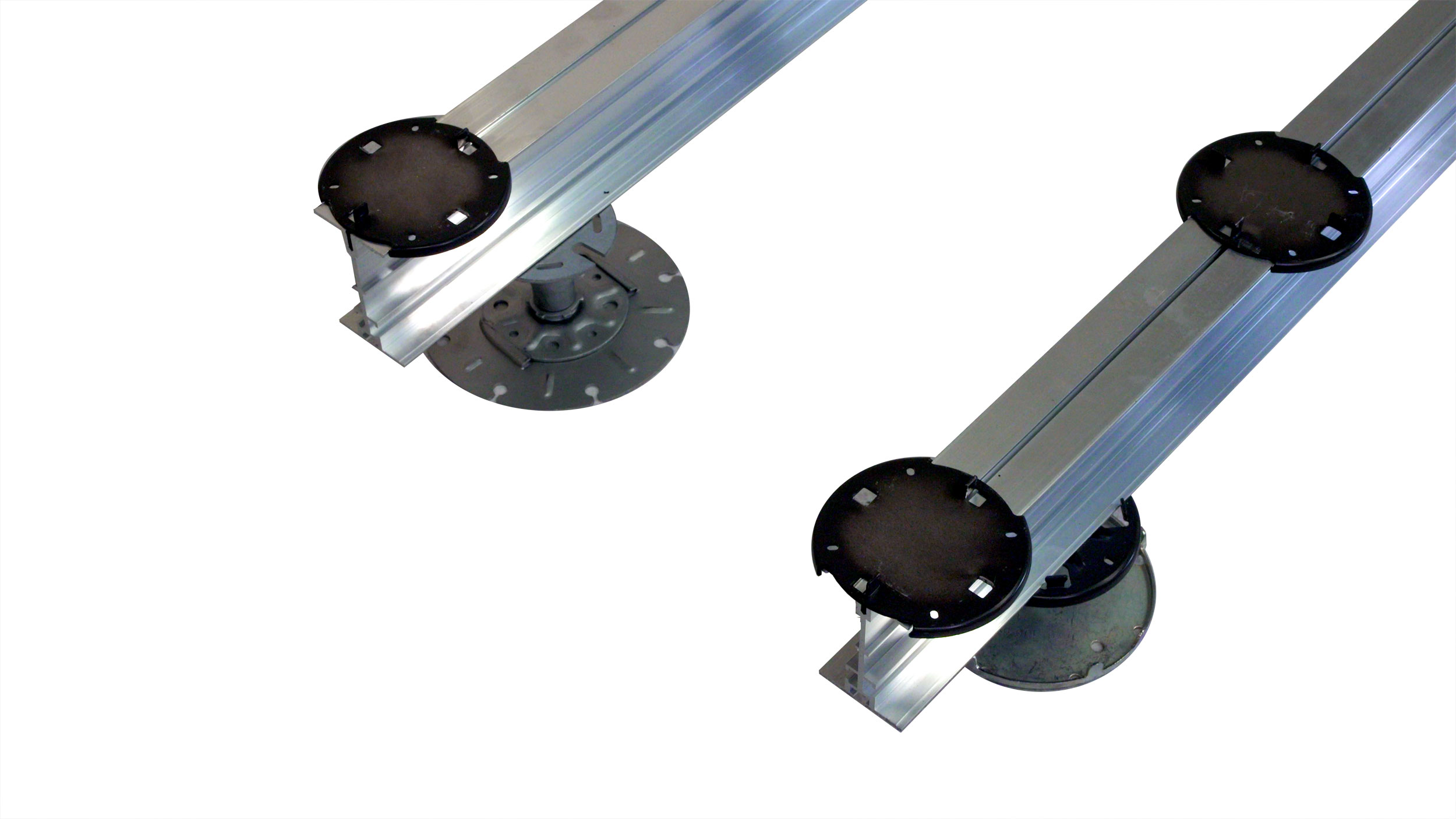

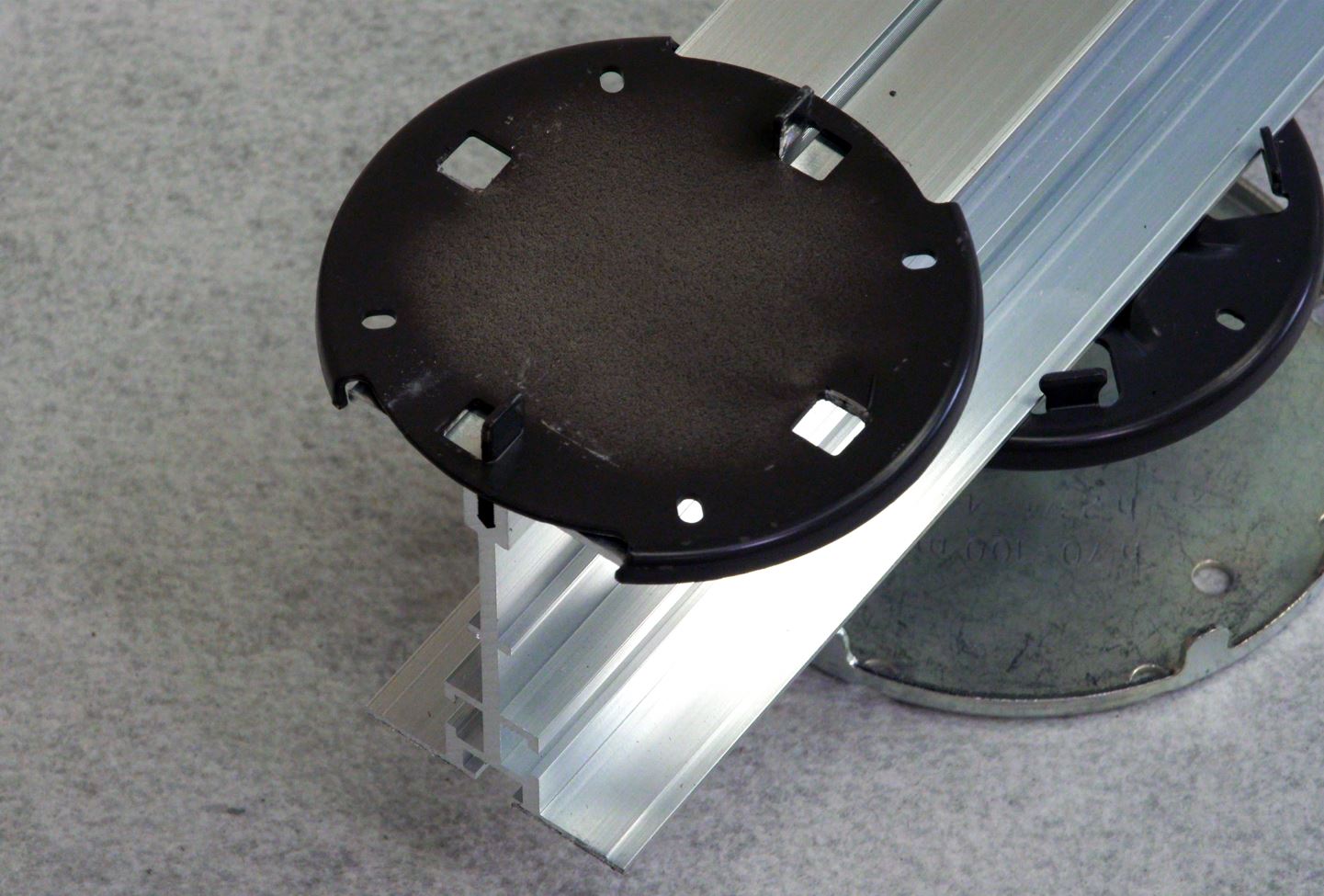

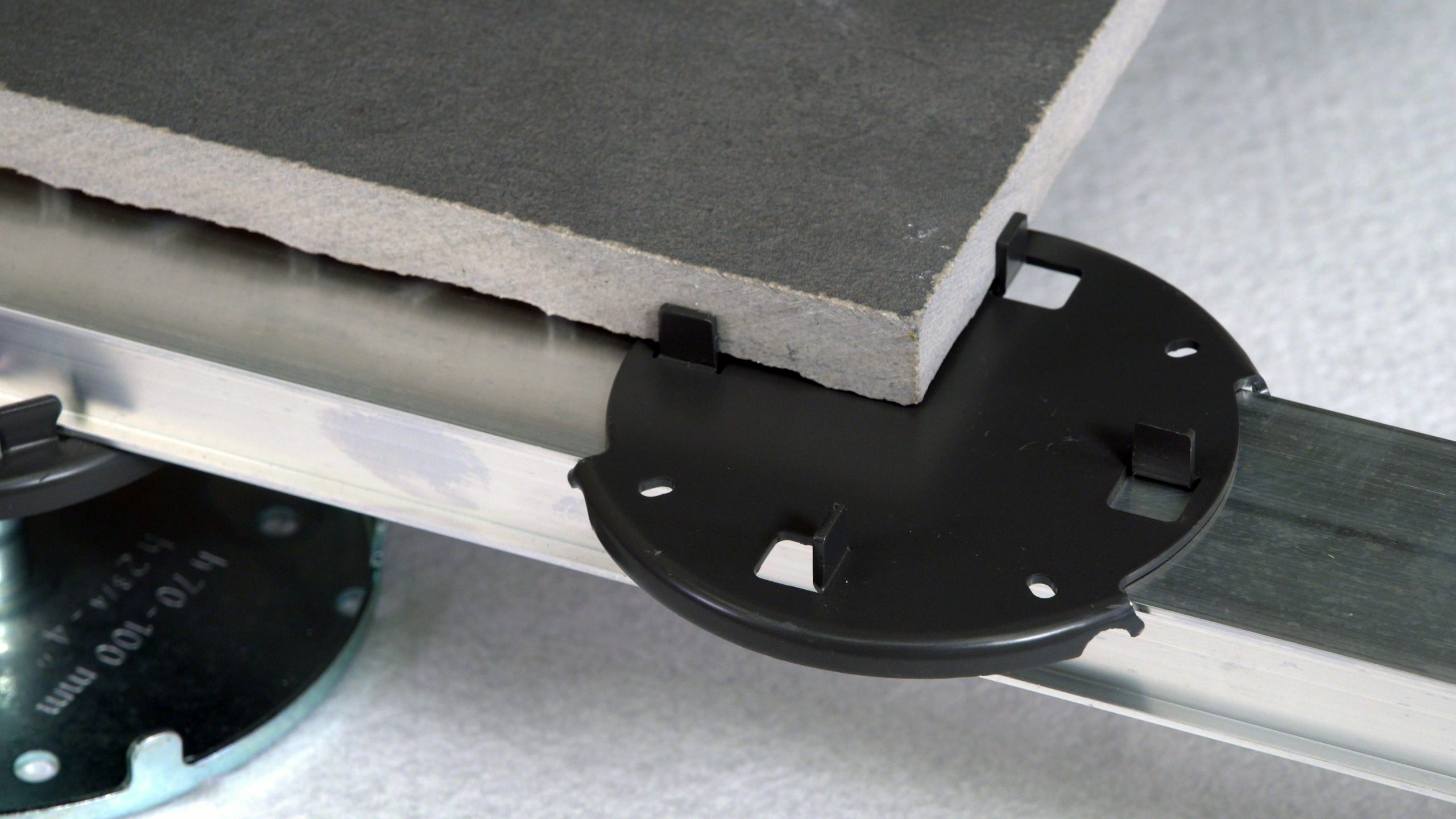

- Our click-deck headpiece is made from stainless steel, designed to hold a ledged-profile aluminium joist (pictured)
- The headpiece is coated with RAL 7016 powder coated paint to prevent reaction between steel and aluminium joist
- Secure fixing between pedestal head and joist means no need for additional mechanical fixings are required
- Self-levelling headpiece available for smoother installation of joist*
- No drilling means less risk of shrapnel or sharp metal objects
- High weight tolerance and large baseplate mean pedestals can be placed at larger distances apart
- This means less units per m²
- Height can be adjusted using adjustable spanner when joist is in place
* self-levelling on pedestals 53mm and above
Fire Regulations
Our Class A2-s1, d0 pedestals meet fire testing standard BS EN ISO 1716:2018
Certified Class A2-s1, d0 (Warrington Fire) – Powder Coating | Steel
They are classified in Class A (‘No contribution to fire’) in
Decision 94/611 /EC
This product has been developed to ensure compliance with:
- Draft BS 8579
- Amendment to Approved Document B May 2020
- Approved Document B 2019 incorporating 2020 and 2022 amendments
- Advice Note on Balconies in Residential Buildings published by Department of Housing, Communities & Local Government (MHCLG) issued on 24 June 2019
- Regulation 38 of the Fire Safety Building Regulations published by the Government
For further information or to discuss a project, speak to a member of our technical team. Call us on 020 8916 2222 or send us a message here.
NBS Source
CAD Drawings – Decking
-
Class A2-s1, d0 Pedestal for Decking 25-32mm
-
Class A2-s1, d0 Pedestal for Decking 32-39mm
-

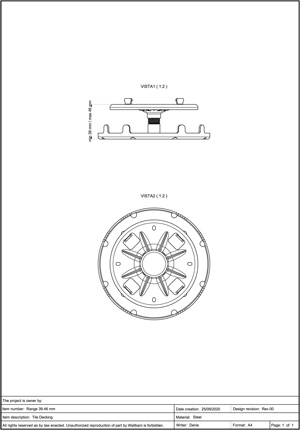

Class A2-s1, d0 Pedestal for Decking 39-46mm
-
Class A2-s1, d0 Pedestal for Decking 46-53mm
-
Class A2-s1, d0 Pedestal for Decking 53-70mm
-

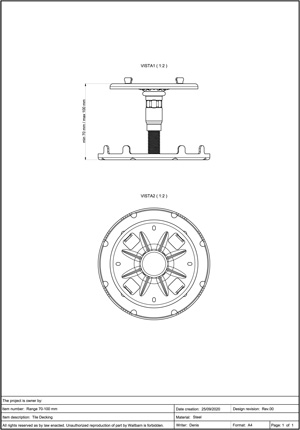

Class A2-s1, d0 Pedestal for Decking 70-100mm
-
Class A2-s1, d0 Pedestal for Decking 100-140mm
-
Class A2-s1, d0 Pedestal for Decking 140-220mm
-

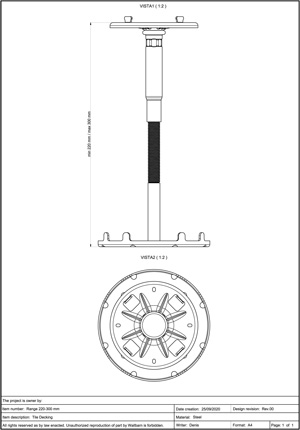

Class A2-s1, d0 Pedestal for Decking 220-300mm
| Material | ||
| Material | Galvanised steel | |
| Thickness of material | 2mm | |
| Reaction to Fire | Class A2-s1,d0 | BS EN ISO 1716:2018 EN 13501-1 |
| Powder Coating Type | Epoxy Polyester Coating | |
| Powder Coating thickness | 60 microns | |
| Application rate | 149 g/m2 | |
| Fully compliant to British Standard (balcony construction) | BS 8579 | |
| Heat Tolerance / softening point: | 465°C | |
| Cold Tolerance / brittle point: | -50°C | |
| Maximum weight load | 2 tonnes | dynamometer |
| Baseplate | ||
| Baseplate diameter | 150mm | |
| Baseplate features | Circular baseplate | |
| 8 x drilled drainage holes 5mm diameter | ||
| 4 x drilled fixing holes 8mm diameter | ||
| Stem | ||
| Stem type | Solid threaded stem | |
| Stem diameter | 16mm | |
| Stem features | Integrated Limit switch to avoid separation of stem from headpiece | |
| Headpiece | ||
| Headpiece diameter | 120mm | |
| Self-levelling Headpiece | 5% angle in all directions | |
| Headpiece | ||
| Click-Deck Headpiece Material | Stainless Steel | |
| Distance between lugs | 60mm | |
| Connection type | Clip fastening to bespoke Wallbarn aluminium rail | |
| Coating | Coated with RAL 7016 powder coated paint | |
| Height range | ||
| MetalPad - 25-32mm | ||
| MetalPad – 32-39mm | ||
| MetalPad – 39-46mm | ||
| MetalPad – 46-53mm | ||
| MetalPad – 53-70mm | ||
| MetalPad - 70-100mm | ||
| MetalPad - 100-140mm | ||
| MetalPad - 140-220mm | ||
| MetalPad - 220-300mm | ||
| Warranty | ||
| Limited warranty (see Terms & Conditions of Supply) based on products being used for purposes stated by Wallbarn up to the amount of the invoice total. | ||
| Warranty | 15 years | |
| Life span | 50 years | |
