Innovation in Pedestal Support: The Next Generation Mega Balance Pedestal

One Pedestal, Multiple Applications

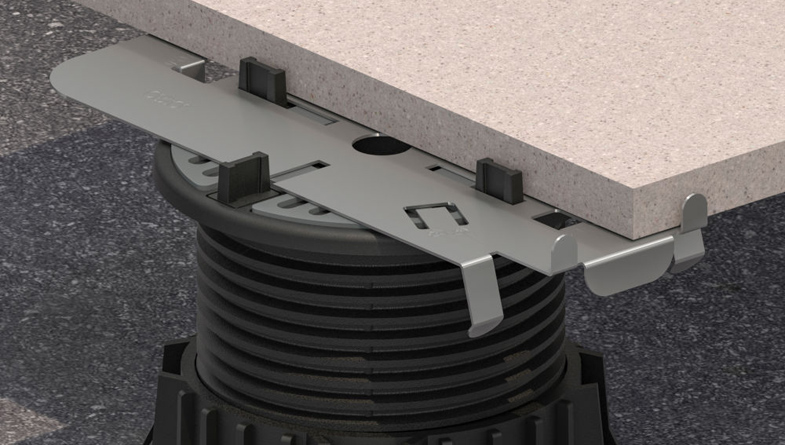

Wallbarn’s Mega Balance pedestal is a true innovation in paving and decking support. With the introduction of a universal head, this pedestal is now suitable for paving, decking, and any of Wallbarn’s aluminium joists/rails – eliminating the need for separate headpieces. This streamlined approach makes ordering and installation even more efficient, reducing complexity on site.

A Smarter Approach to Height Adjustments

The new Mini Mega Balance pedestal now covers heights from 25mm to 75mm, a range previously requiring three separate pedestals. This rationalised design simplifies specification, ordering, and stock holding.

With just three core pedestals and two extenders, the Mega Balance range now provides a height range from 25mm to 1025mm:

• 25mm to 75mm Mini Mega Balance
• 75mm to 125mm Mega Balance
• 125mm to 225mm Mega Balance
• 25mm Dome Extender (up to three can be used per pedestal)
• 100mm Tower Extender (up to eight can be used with the 125mm to 225mm Mega Balance)

Precision and Flexibility On-Site

The Dome Extender provides 25mm height increments and is available separately, allowing contractors to make last-minute height adjustments without delays. When initial height measurements prove inaccurate, these extenders ensure a quick and cost-effective solution.

For larger height adjustments, the 100mm Tower Extender is designed for use with the 125mm to 225mm Mega Balance, stacking up to eight units to reach a maximum height of 1025mm.

Strength, Stability, and Self-Levelling

Mega Balance pedestals offer unparalleled strength, with an independently tested weight tolerance of 31.68kN – approximately equivalent to over 3 tonnes per pedestal. The self-levelling head not only corrects subfloor imperfections but also counteracts slopes of up to 5% (2.86 degrees or a 1 in 20 fall), ensuring a stable and even surface for all applications. This high-performance design helps overcome on-site challenges that often arise at the last minute.

Rationalising for Efficiency

By reducing the number of pedestal types while maintaining full height coverage, Wallbarn has created a more efficient stockholding and specification process. Alongside the Mega Balance, we have also streamlined the Universal & Balance pedestal height ranges, making it easier for specifiers and contractors to select the right product without excess stock or complexity.

Mega Balance: The Do-It-All Pedestal

From its universal head to its high strength and self-levelling capabilities, Mega Balance is the ultimate all-in-one pedestal for paving and decking projects. Its rationalised components, extended height range, and simplified ordering process make it the perfect solution for modern construction challenges.

For more information, contact us today to discuss your project requirements.
