A Great Example of TD Decking Supports at Work

January 13th, 2016

We recently supplied TD decking supports for a project called Commodity Quay in St Katherine’s Docks near Tower Bridge.

Re-Waterproofing Refurbishment Project

There were already existing paving and decking in place on the podium deck and our client was looking for the ideal way to match the levels up perfectly and this completed project offers a great example of just how the pedestals can be installed onto an existing deck for a re-waterproofing refurbishment project.

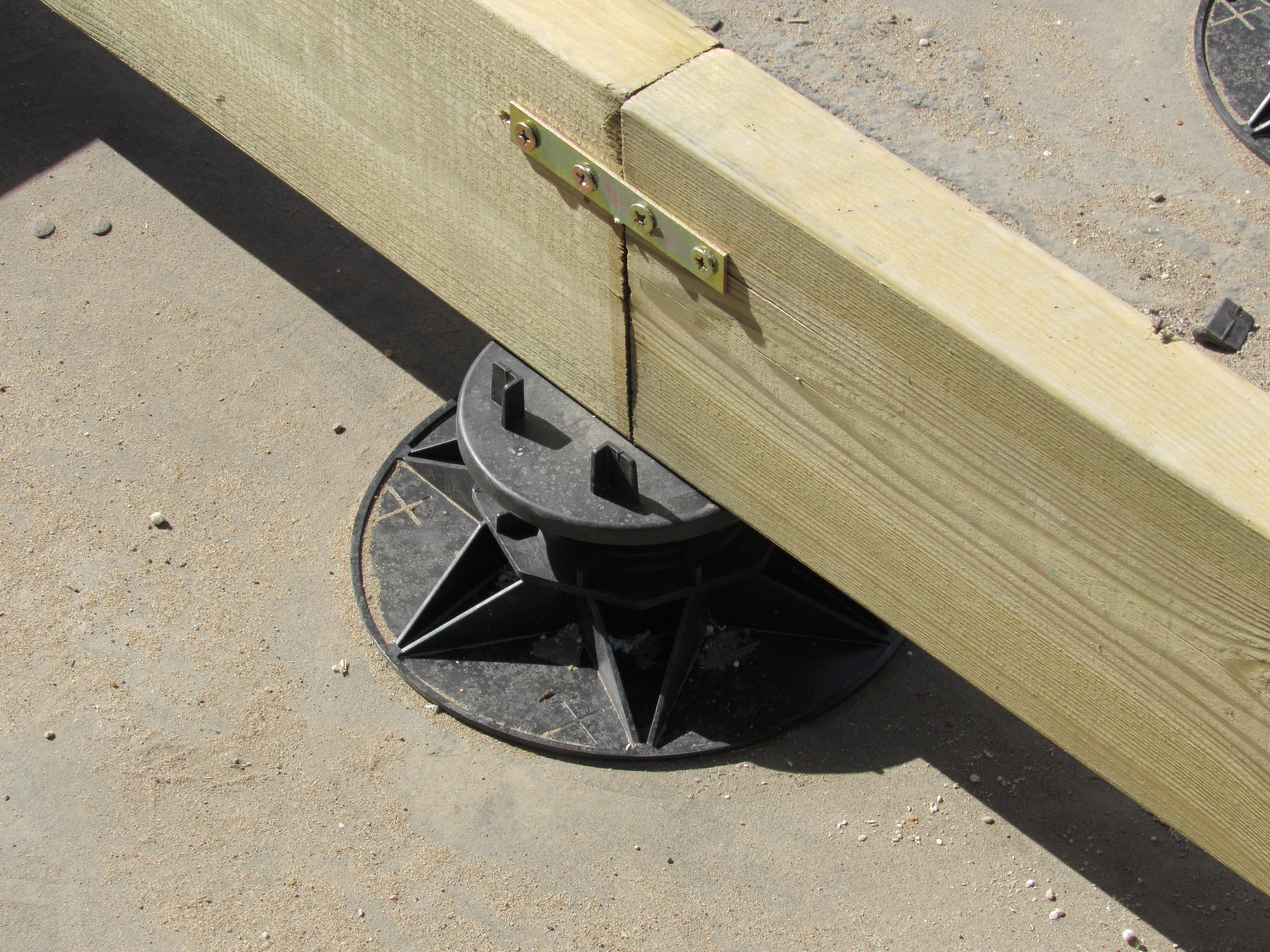

Because the contractors were able to twist the adjustable stems whilst the timber joists were in place, they were able to get the correct levels easily. The client used very large timber joists, 6 x 2’, but these fit onto the headpieces without issue.

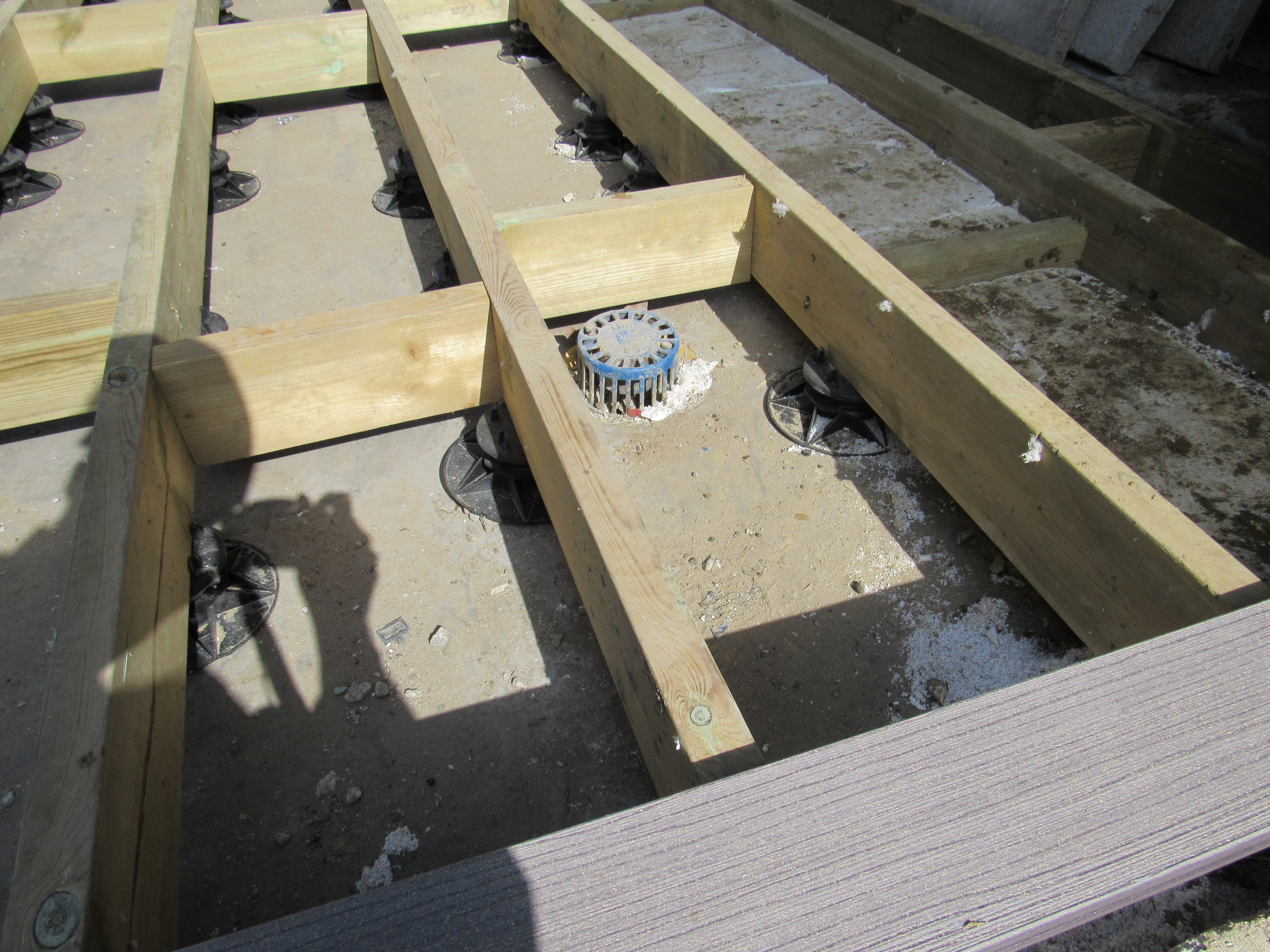

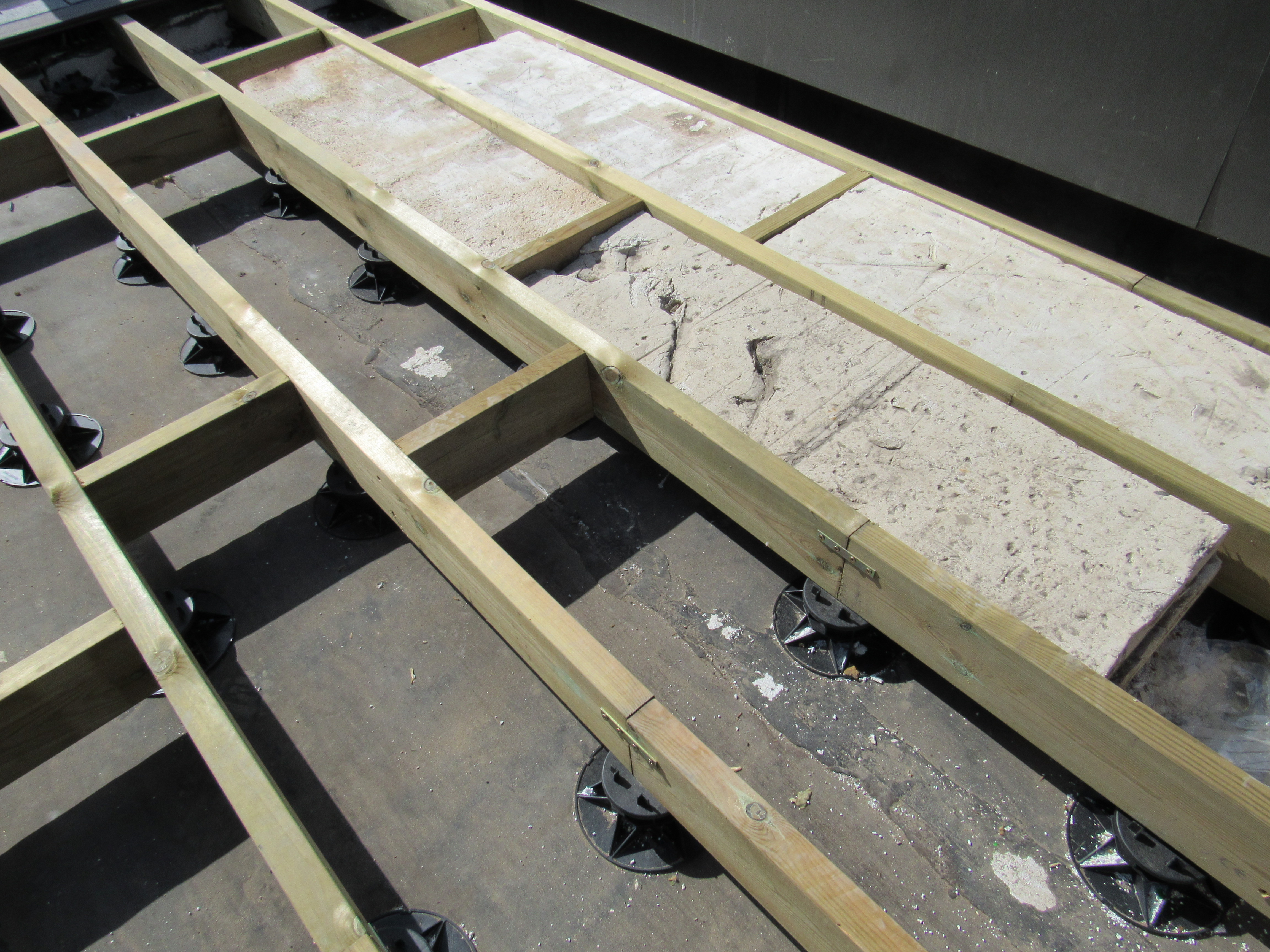

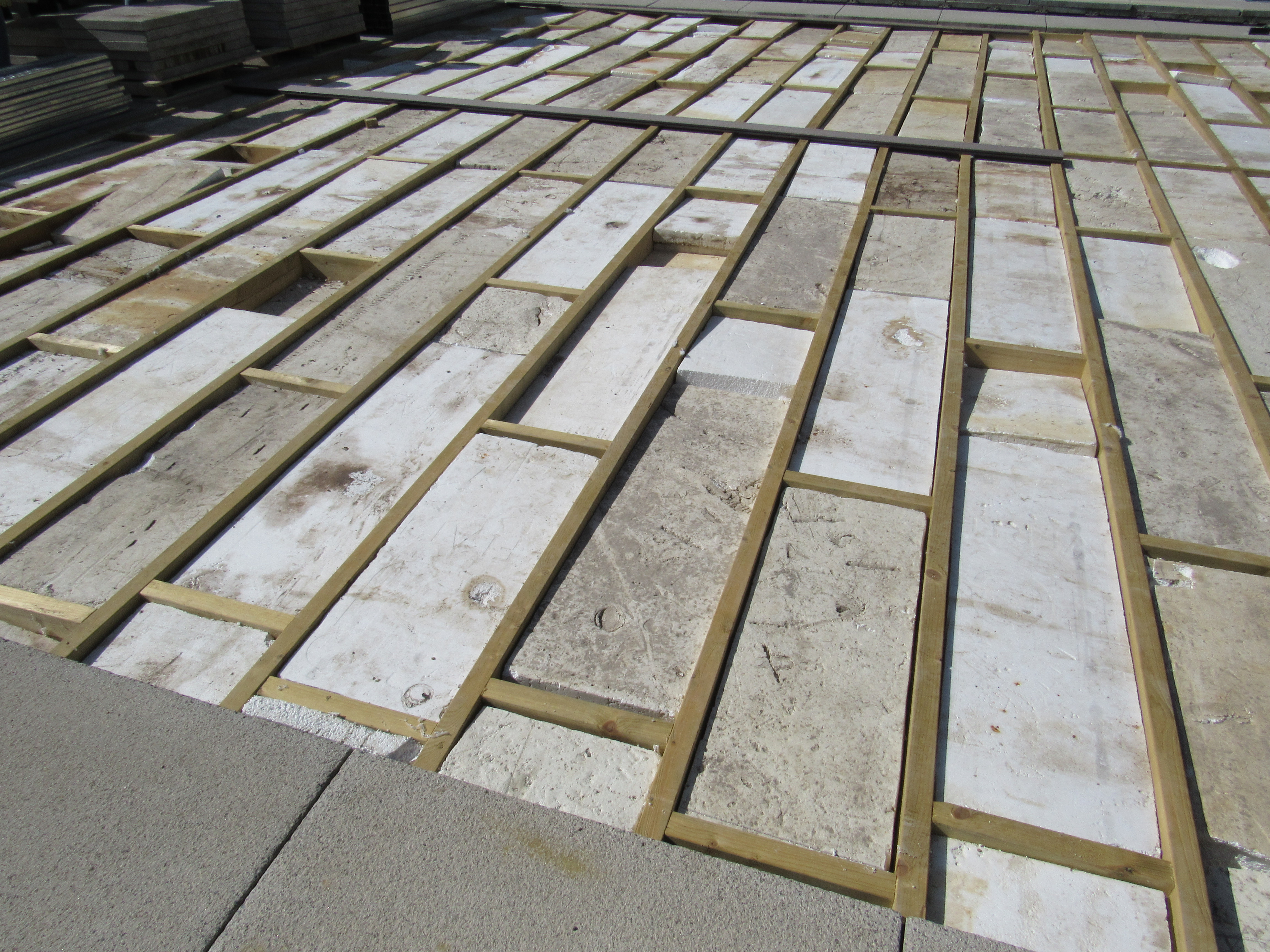

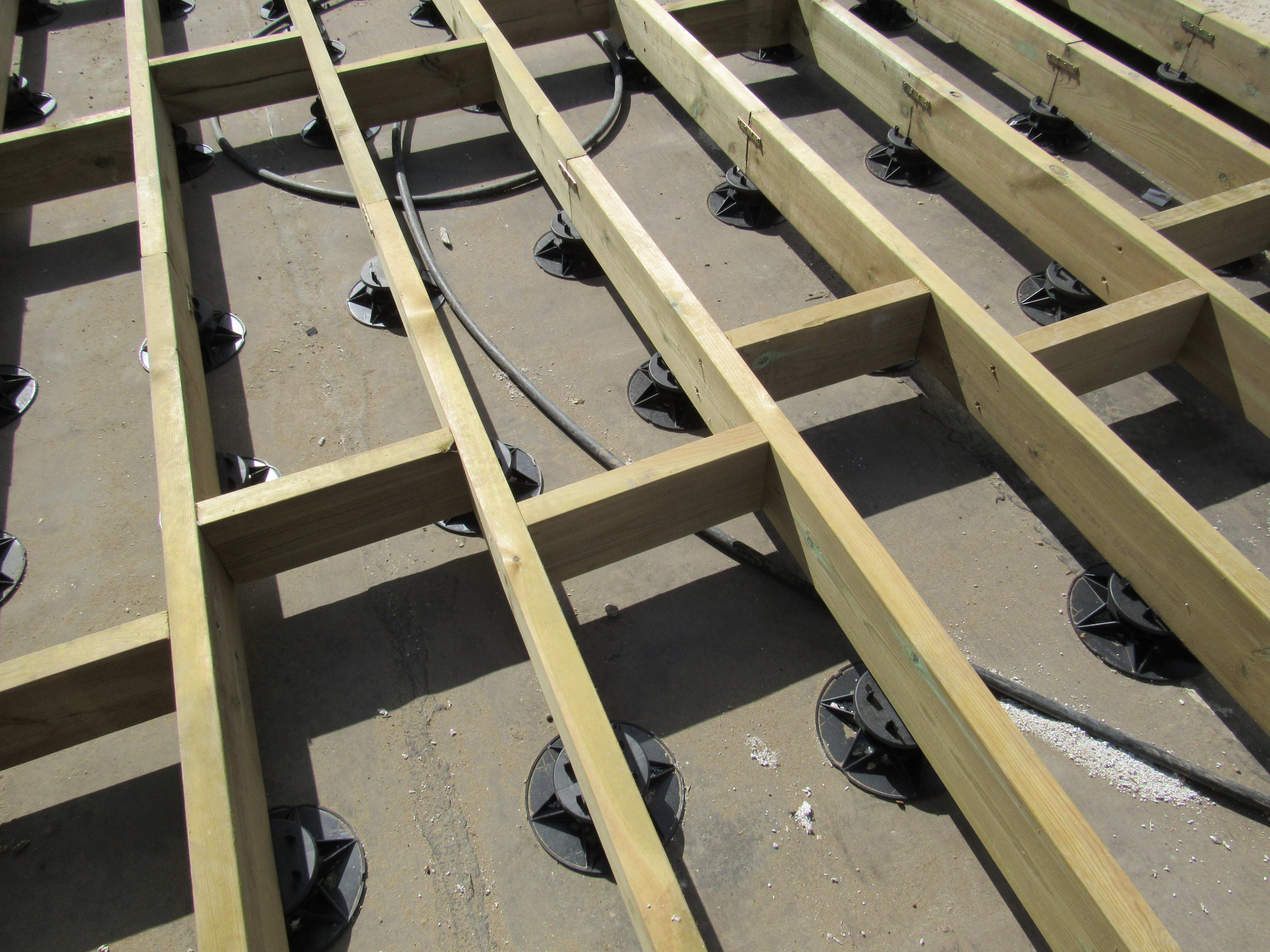

Some of the photos below highlight how that insulation was able to be cut to fit between the cross-joist fixings. The decking pedestals were situated so that water pipes, metal drainage outlets and other services were covered, whilst not interrupting the drainage of the deck in any way.

The Ideal Solution

The landscaping contractor, Scotscape, was delighted with the service from Wallbarn. They called the sales office in the afternoon of Friday with an urgent request for material, and Wallbarn was able to deliver the materials on site on Saturday morning. This meant that the project was finished on time.

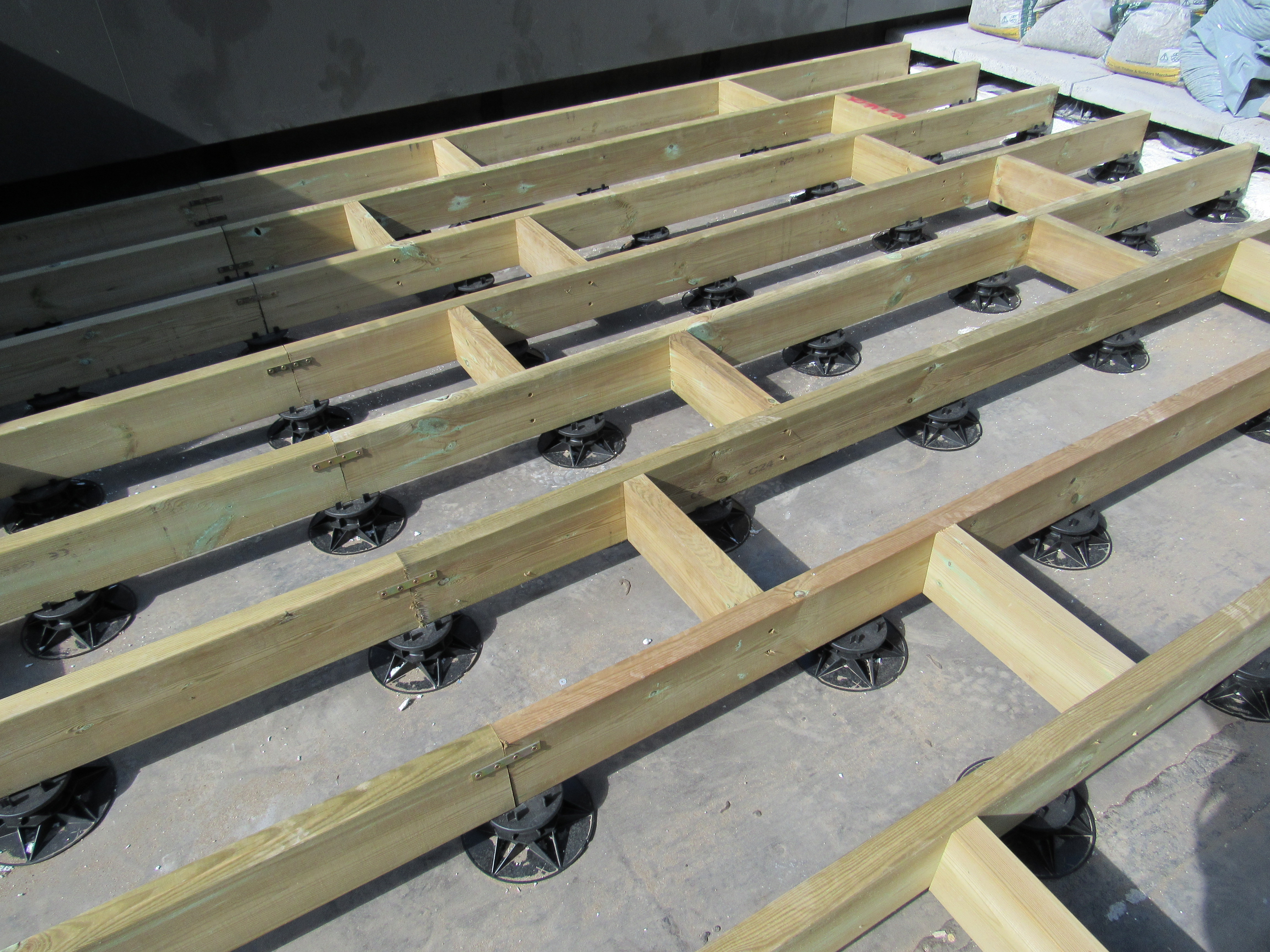

The images below highlighted how our TD Decking Supports were installed.

[nggallery id=23]
