ExaDeck System : Fire Safe, Versatile & Luxurious
Wallbarn has partnered with FireDeck to deliver ExaDeck, a premium fire-rated decking system combining FireDeck’s Class A porcelain ceramic boards with Wallbarn’s non-combustible substructure. Designed for both new builds and refurbishments, this system ensures full compliance with fire safety regulations while offering a durable, beautiful, and precision-engineered finish.
Porcelain Decking Gallery Popup
-

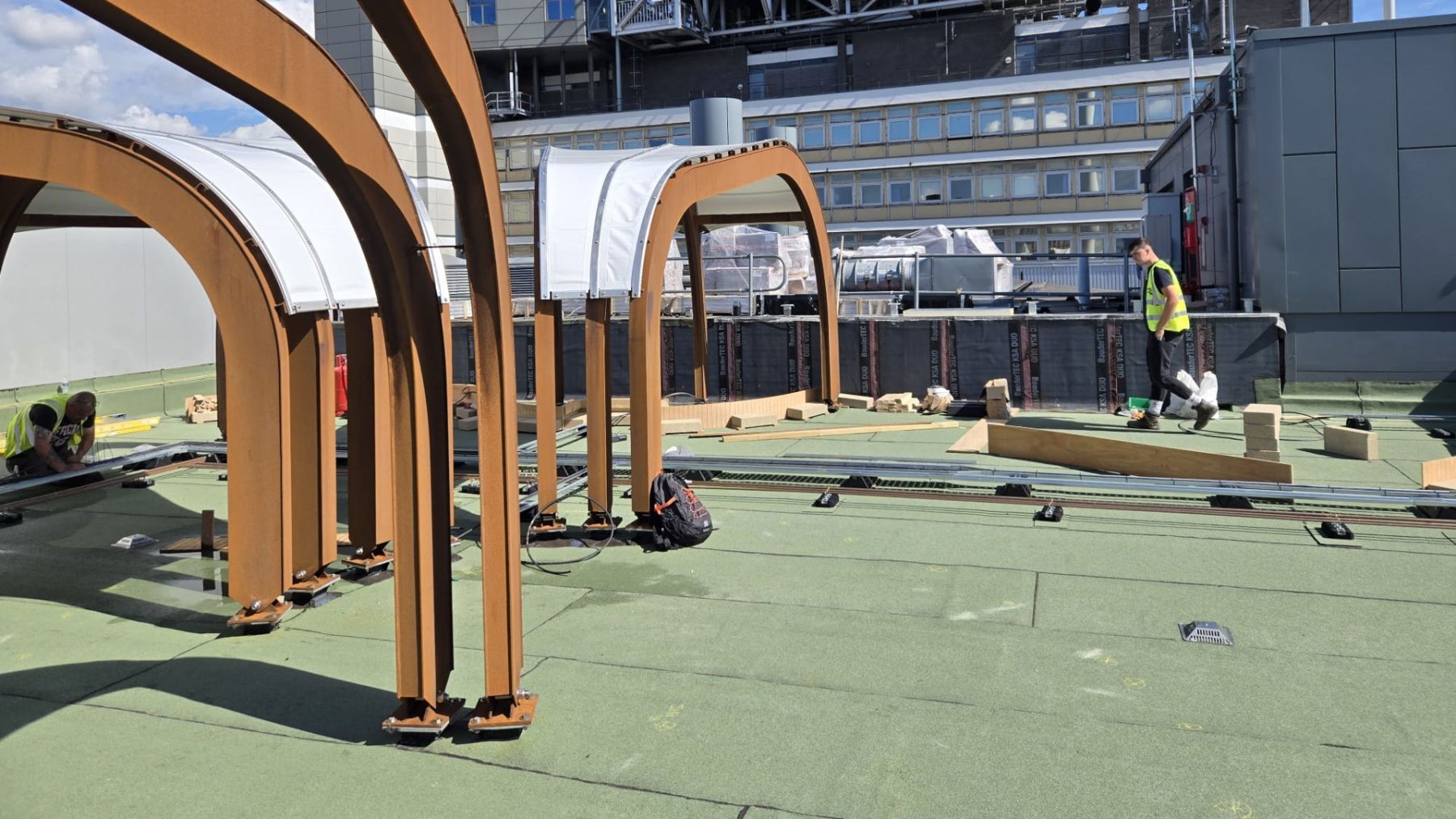

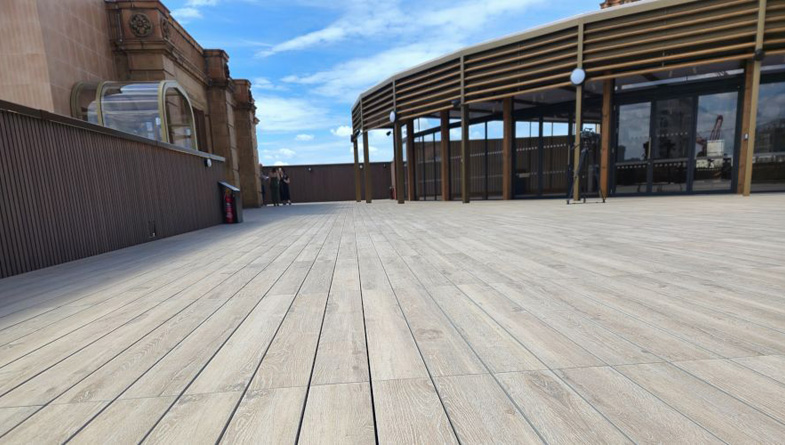

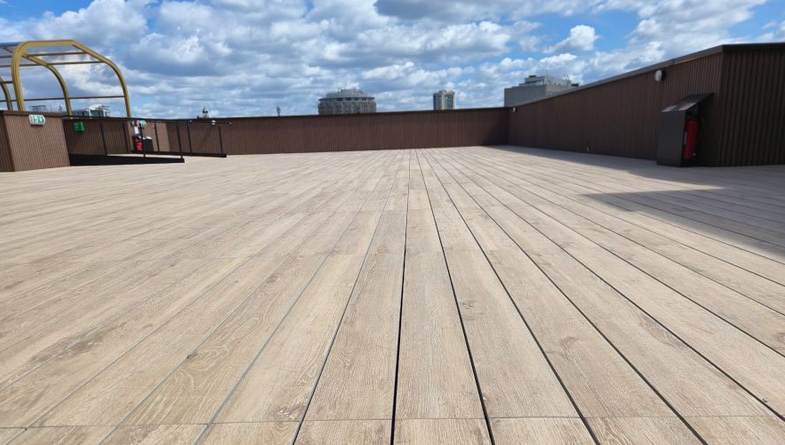

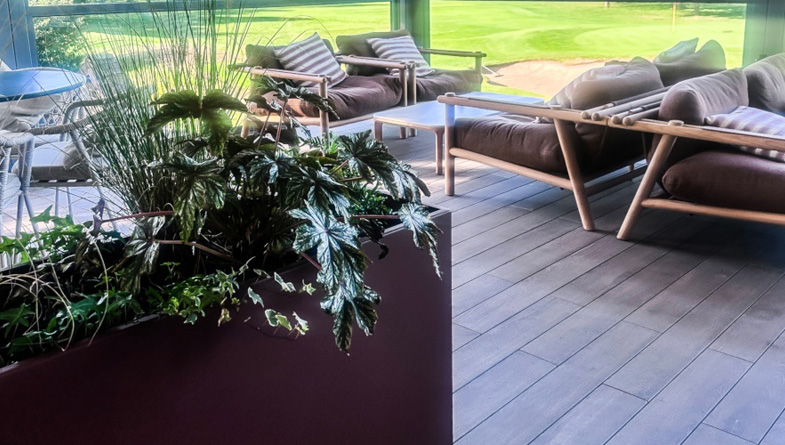

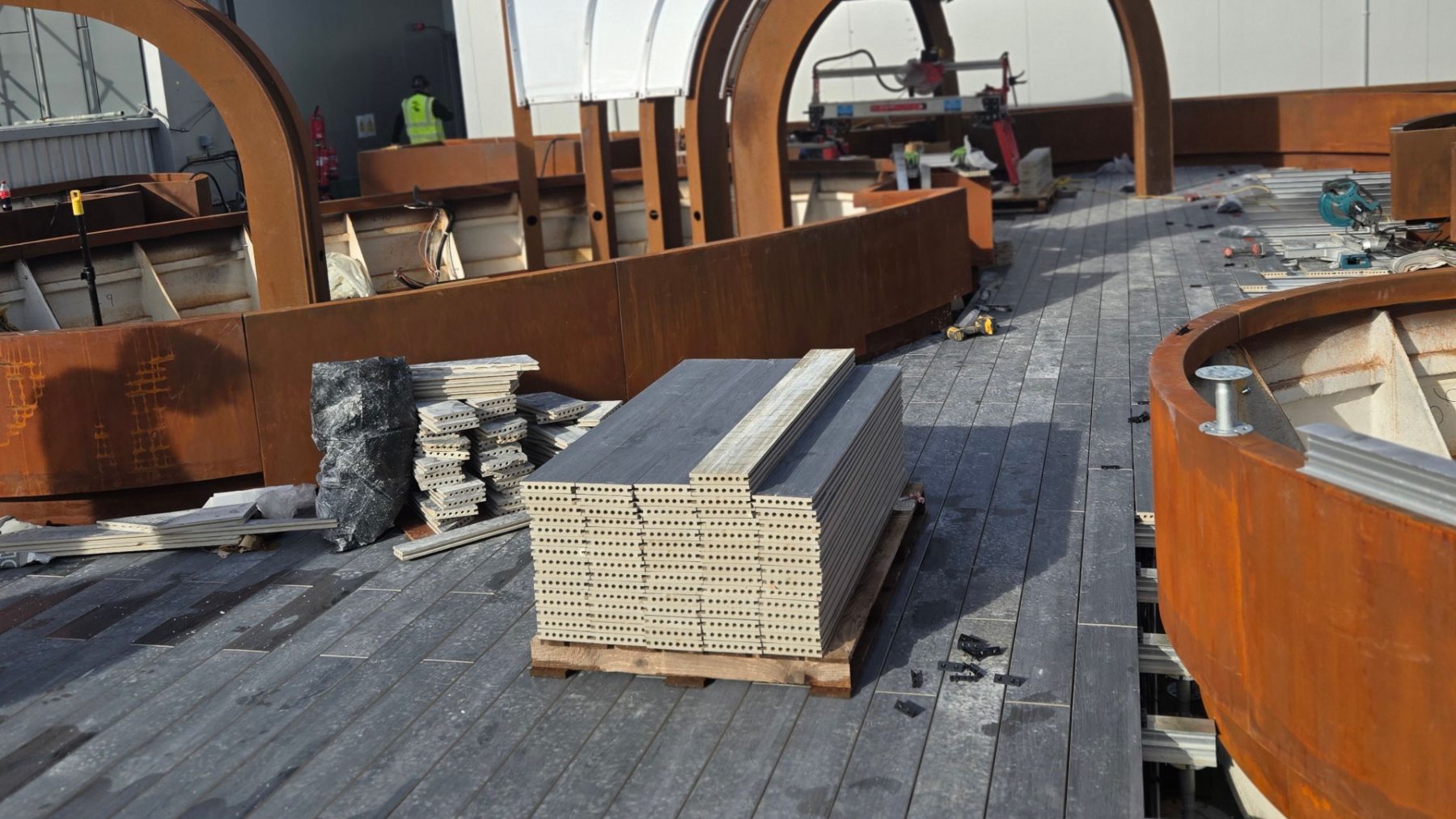

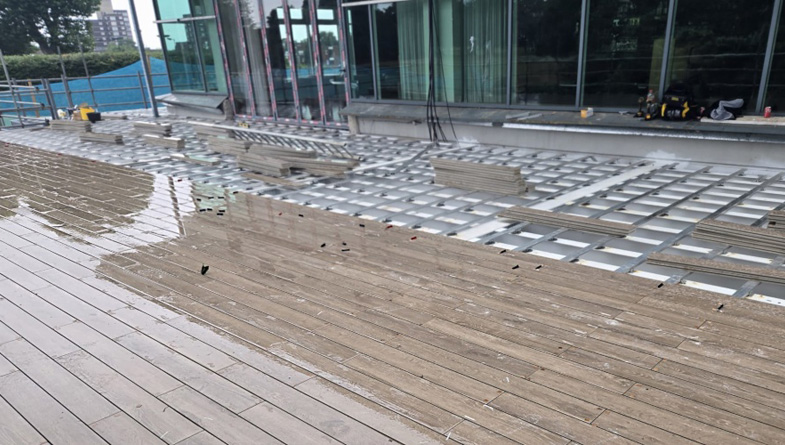

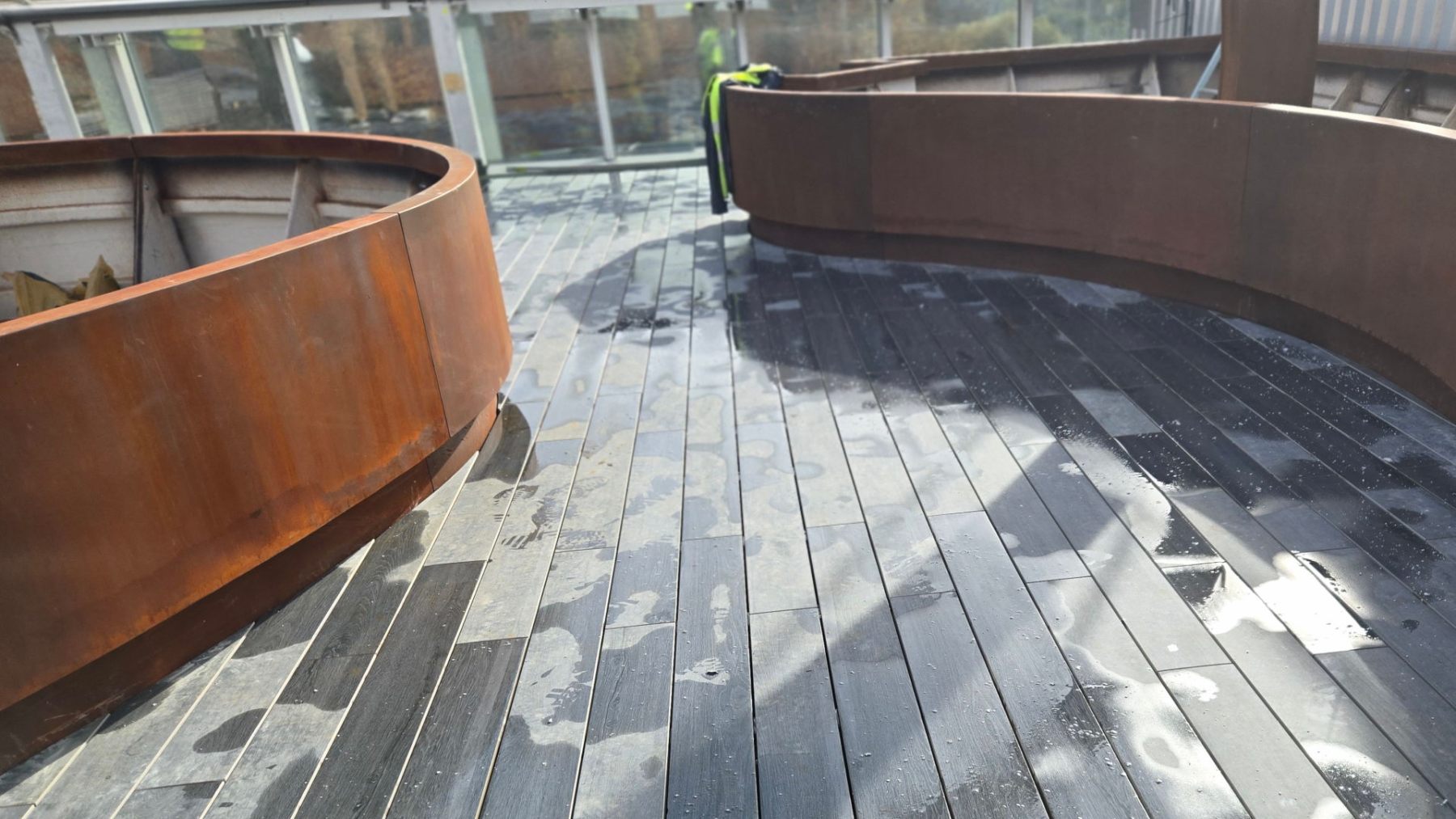

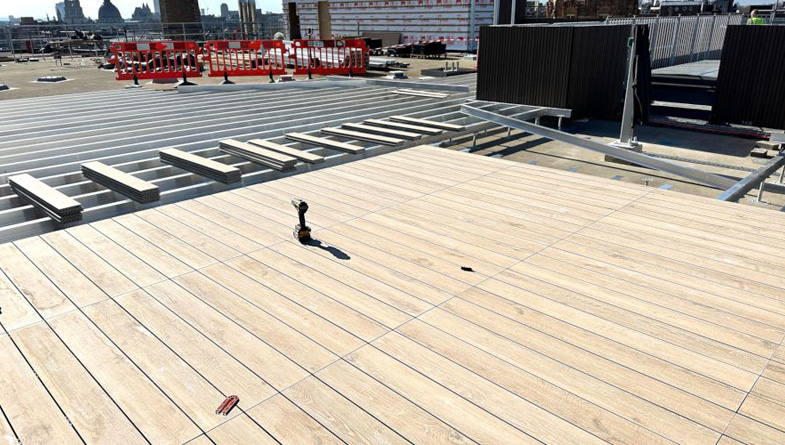

Completed Projects
-
Installation
-
Graphics
-
Video
no images were found
Why ExaDeck ?
The ExaDeck system features double-rectified porcelain ceramic decking boards, engineered for exceptional durability, performance, and sustainability. Manufactured using recycled materials, the boards are themselves fully recyclable—making ExaDeck an environmentally responsible solution. Supported by a high-strength rail substructure, weight-bearing adjustable pedestals, and precision-engineered fixings, the result is a stable, movement-free decking system built to last.

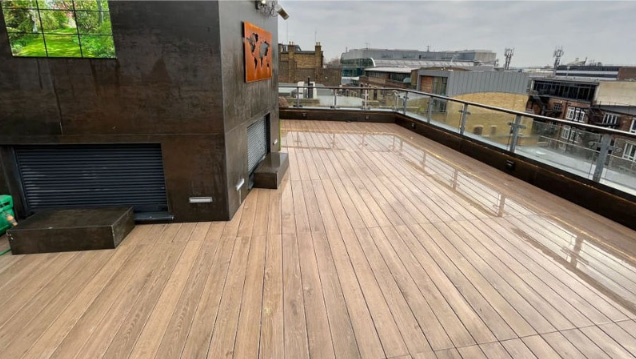

Ideal for heavy-traffic commercial settings, ExaDeck can also be integrated into a full planter decking system—providing seamless design versatility for terraces, public walkways, and premium outdoor spaces. Whether the project demands fire safety, elegance, or long-term resilience, ExaDeck delivers on all fronts.
Key Features of the Decking System
- 100% Fire Rated – Every component, including the substructure, fixings, and connectors, is fully Class A fire-rated for maximum compliance.
- Porcelain Ceramic Surface – The double-rectified boards offer the strength and refined finish of ceramic with the durability and density of porcelain.
- Chemical, Heat & Frost Resistant – Withstands extreme weather from -40°C to +70°C without degrading or discolouring.
- High Break Strength – Reinforced components and substructure deliver industry-leading load tolerance, proven through independent testing.
- Stable & Movement-Free Components – Precision-engineered to prevent shifting, warping, or deformation over time, even under harsh conditions.
- Secure Fixing System – The W Clip and Class A connectors provide long-term structural integrity and prevent loosening.
- Low-Maintenance & Easy to Clean – No special treatments or protective coatings required—simply clean with standard methods.
- Sustainability Focused – Manufactured using recycled inputs with efficient processes. All components are recyclable at end of life.
- Suitable for Commercial & High-Traffic Areas – Engineered for balconies, terraces, public spaces, and other demanding environments.
- Full Terrace Planter Integration – Seamlessly combine with fire-rated planters as part of a complete green terrace design.
- Independently Wind Uplift Tested – Resists uplift forces of 7.46kN/m², equivalent to wind speeds over 200mph.

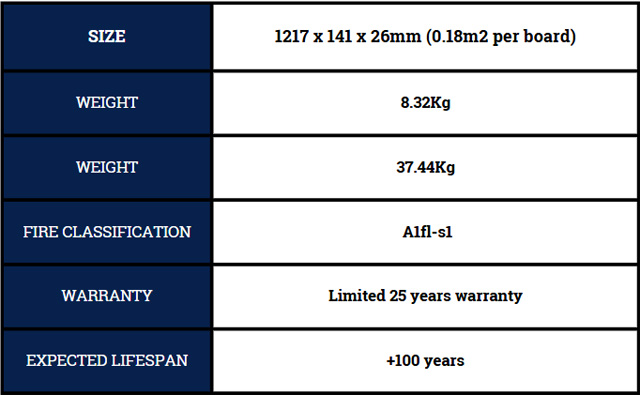

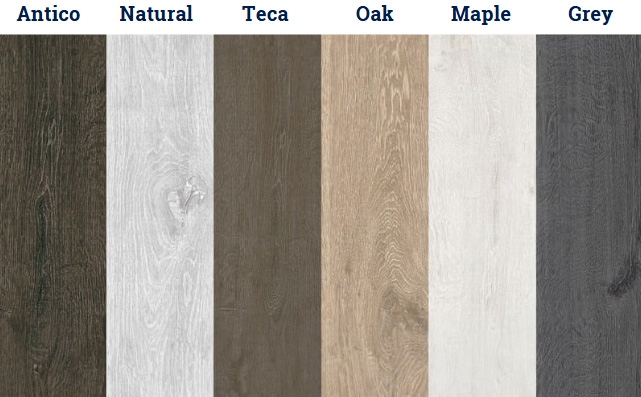

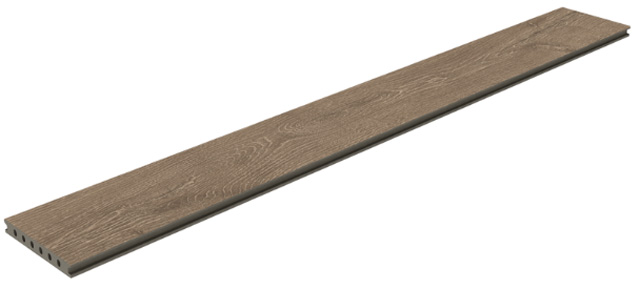

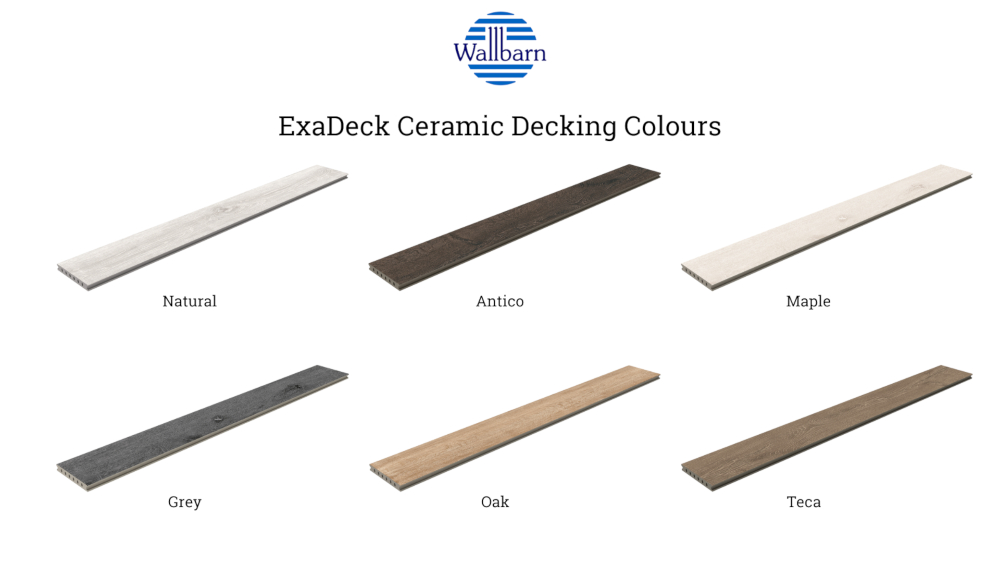

ExaDeck Board
ExaDeck Board Overview
- Double-rectified ceramic decking for superior strength, stability, and sustainability

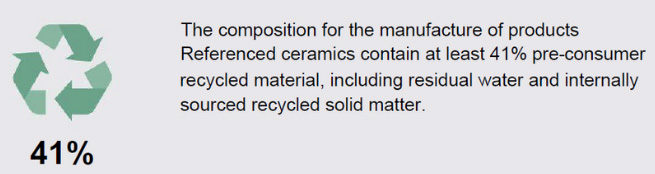

- Manufactured partly from recycled clay
- Double rectification ensures absolute precision: perfectly straight, flat, and consistent boards
- Allows for seamless installation, preventing issues like rocking, movement, or uneven surfaces
Exceptional Durability
- High mechanical and abrasion resistance, ideal for heavy foot traffic and commercial use

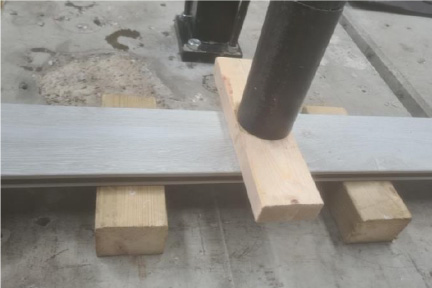

- Independently tested to withstand 450kg of direct force over 400mm joist centres
- Next-to-zero water absorption makes it resistant to high humidity and coastal conditions
- Rigorously tested for wind uplift, ensuring stability in exposed environments
Sustainability at Its Core
- Manufactured using solar energy and recycled water, reducing environmental impact
- Fully recyclable at the end of its life, supporting modern sustainability goals
- 25-year warranty and a 100-year life expectancy for long-term eco-conscious performance
Long-Term Structural Integrity
- Unlike wood or composites, ceramic remains stable, resisting warping, degradation, and loosening over time
- Secure and immovable when installed correctly, ensuring long-term reliability
- Fire-rated, weather-resistant, and highly durable for demanding environments
- Ideal for urban landscapes, high-rise balconies, and high-traffic public spaces
Wallbarn x FireDeck – A Complete Fire-Rated Decking System
- Wallbarn is partnering with FireDeck to offer a fully compliant, Class A fire-rated decking solution
- Combining ExaDeck’s precision-engineered ceramic boards with FireDeck’s advanced substructure
- Delivers a safe, robust, and visually striking decking system for high-risk environments
- Ideal for projects requiring the highest levels of fire safety and long-term performance

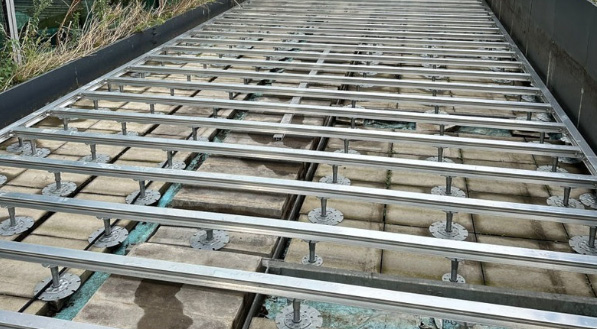

Aluminium Joist
Aluminium Rails: Strength, Stability & Fire Safety
Wallbarn’s Aluminium Box Rail and I-Plus Rail provide the high-strength, non-combustible substructure for the ExaDeck system, ensuring a fire-rated, stable, and long-lasting decking solution. Made from high-grade extruded 6063 T6 aluminium, they are fully Class A fire-rated (BS EN 13501-1:2018) and designed to integrate seamlessly with Wallbarn’s MetalPad Ex pedestals or Joist Holders, delivering a secure, movement-free foundation for decking installations.
Secure & Reliable Installation
- Precision-engineered profile provides ample surface area for secure fixing
- Compatible with Wallbarn’s W Clip system to keep ExaDeck boards firmly in place, preventing loosening or failure over time

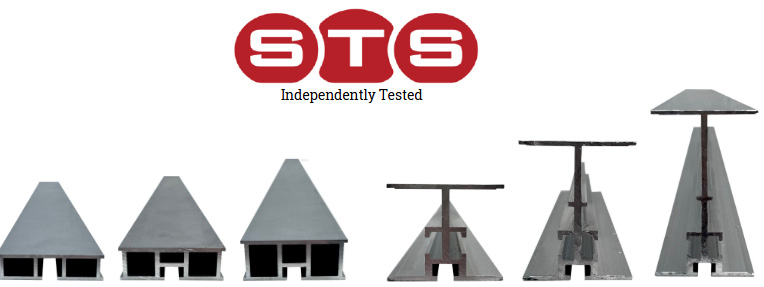

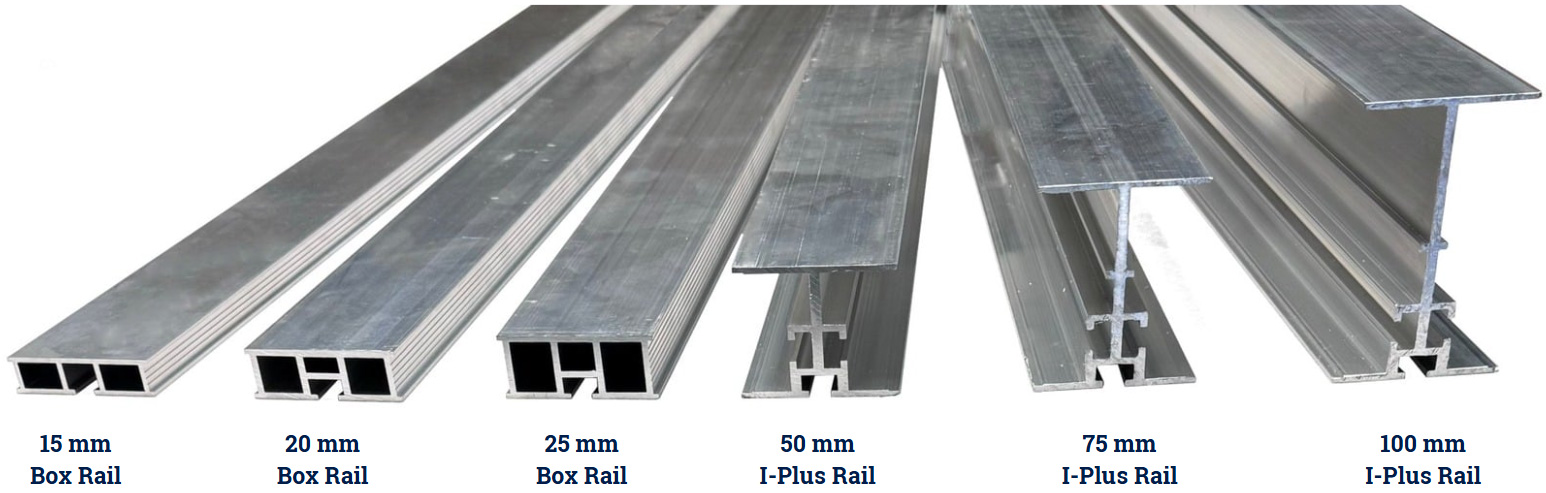

Versatile Profile Options
- Box Rail: Available in 15mm, 20mm, and 25mm profiles for ultra-low height thresholds in space-restricted applications
- I-Plus Rail: Available in 50mm, 75mm, and 100mm heights, allowing longer spans between pedestals, reducing materials and simplifying installation
Sustainable & Long-Lasting
- Manufactured in the UK and fully recyclable at the end of its lifespan
- 15-year warranty and a 50-year life expectancy, offering a future-proof, eco-friendly decking solution
Superior Strength & Durability
- Independently tested to withstand substantial loads without deformation
- Corrosion-resistant and weatherproof, ensuring long-term structural stability
- Unlike timber or composite alternatives, will not warp, rot, or degrade, making it ideal for high-rise balconies, terraces, and public spaces

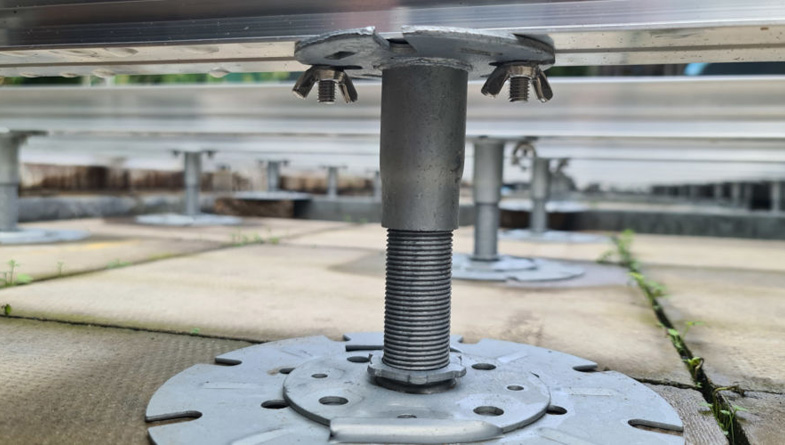

Adjustable Pedestal
The Fire-Rated Foundation of the ExaDeck System

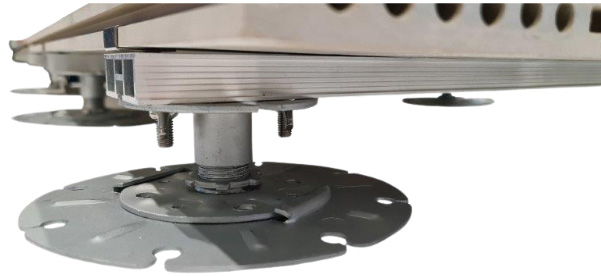

Wallbarn’s MetalPad Ex Adjustable Pedestals are the primary support system for the ExaDeck decking system, offering precise height adjustment and a stable, movement-free substructure. Designed exclusively for use with Wallbarn’s Aluminium Box Rail and I-Plus Rail, they provide a secure, non-combustible foundation that meets Class A1 fire safety standards (BS EN 13501-1:2018), ensuring full compliance for high-rise and commercial projects.
Versatile Height Range & Easy Installation
- Adjustable from 26mm to 375mm for flexibility across different applications
- M8 Wing Nut connection allows for tool-free tightening and quick, secure installation
- Direct integration with Wallbarn’s aluminium joists eliminates the need for additional mechanical fixings
Advanced Corrosion Protection
- Zintec 200 anti-corrosion coating prevents rust and galvanic corrosion when in contact with aluminium joists
- Extends the lifespan of the entire decking system, ensuring performance in harsh outdoor condition
Precision & Stability
- Allows for fine height adjustments, ensuring a perfectly level deck even on uneven sub-surfaces
- Enhances structural stability, minimising movement and keeping decking boards securely in place
Fire-Rated & Fully Compliant
- Class A fire-rated for use in high-rise and commercial projects
- Forms a secure, non-combustible, and long-lasting foundation when combined with the ExaDeck aluminium rail system

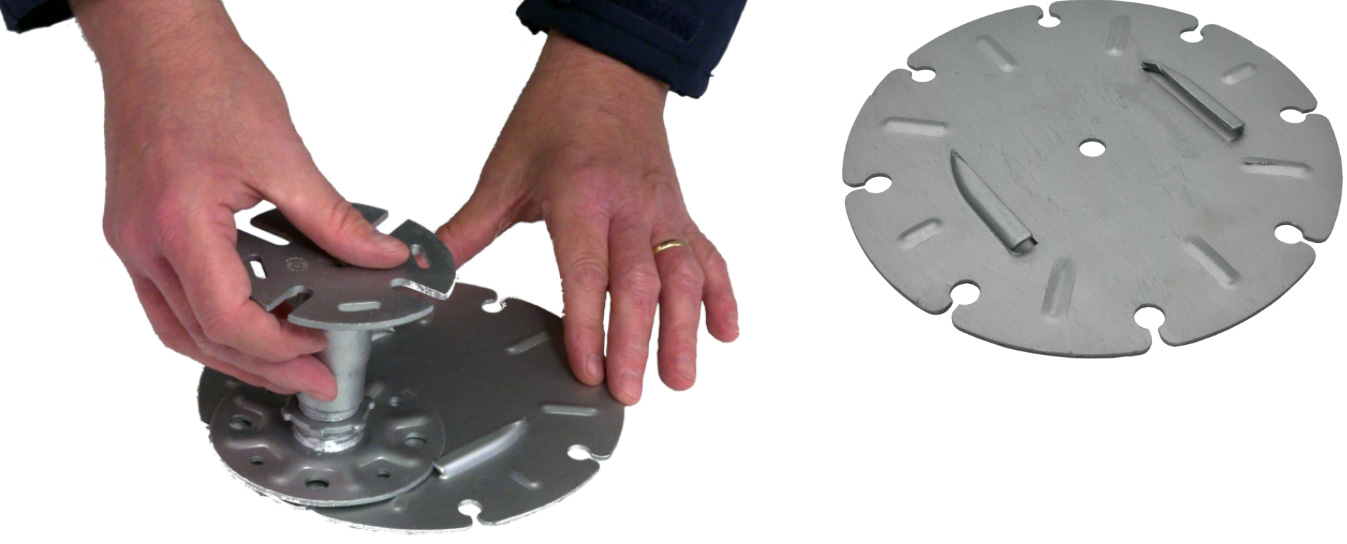

The Spreader Plate for the MetalPad Ex Pedestal is designed to aid stability and load distribution. Manufactured from galvanised steel and coated with Zintec 200, it offers excellemt resistance to rust and corrosion, ensuring long-term durability in any environment. By dispersing the weight coming down from the pedestals, it helps prevent excessive point loading, making it particularly beneficial for vulnerable subfloors such as insulation layers or waterproof membranes.
Beyond protecting subfloors, the Spreader Plate significantly increases the weight tolerance of the MetalPad Ex Pedestal, boosting its capacity from 5 tonnes to 7 tonnes. This added strength makes it ideal for high-traffic commercial areas and projects with demanding structural requirements. Whether used to reinforce weight-bearing performance or safeguard sensitive subfloors, the Spreader Plate provides an essential layer of protection and reliability.
Joist Hangers
For use on existing steel structure on Retro-Fit Projects

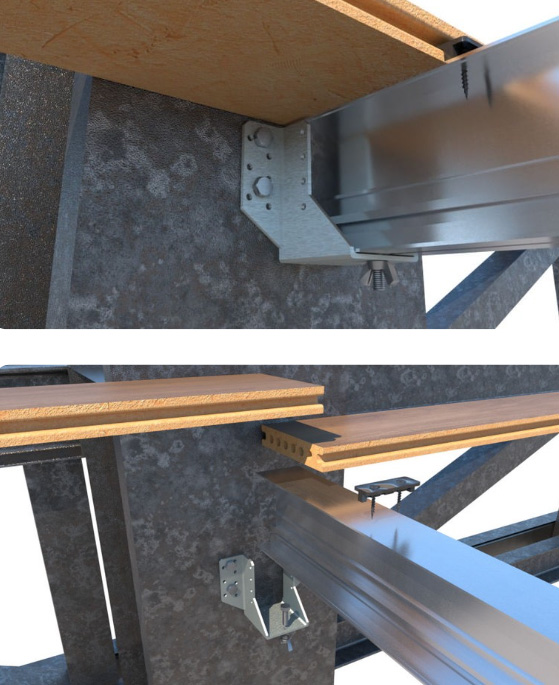

Wallbarn’s Joist Hangers have been developed specifically for retrofit and refurbishment projects, providing a strong, reliable connection between existing steel or timber structures and the ExaDeck substructure. Designed to accommodate Wallbarn’s 60mm-wide Box and I-Plus Rails, these joist hangers ensure a precise, stable fit, making them the ideal solution for installations where a pre-existing steel framework needs to be utilised.
The joist hangers are secured directly to the steel structure, allowing the aluminium joists to be fixed in place from the side using screws. This method ensures a rigid, movement-free substructure, preventing loosening over time and enhancing the long-term integrity of the ExaDeck system. By creating a strong and stable connection without the need for invasive modifications, these joist hangers simplify installation while ensuring the decking system remains secure, level, and fully compliant with fire safety regulations.
M8 Wing Nut
For easy & quick connections

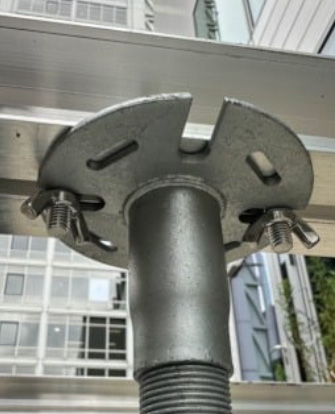

The M8 Wing Nut Kit, made from stainless steel, is a Class A fire-rated component designed for quick, tool-free installation with the MetalPad Ex Pedestal. It securely fastens Wallbarn’s aluminium joists to the pedestal head, creating a stable, non-combustible substructure for ExaDeck installations.

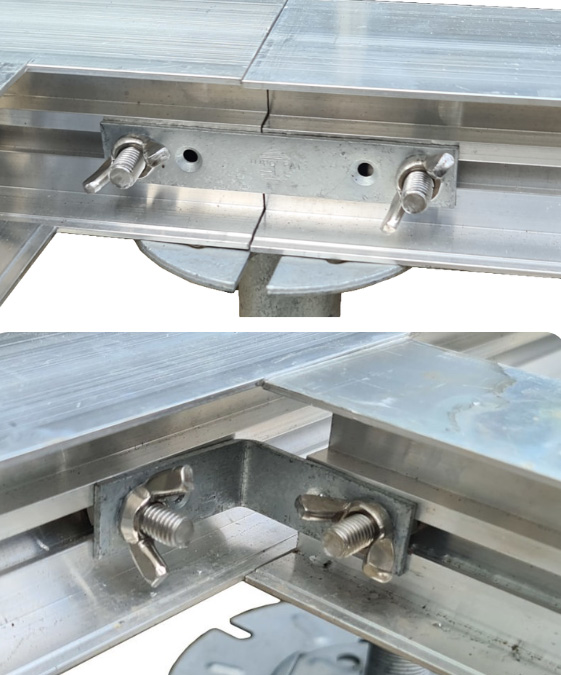

This hand-tightened connector allows for easy height and positioning adjustments during installation, ensuring precise alignment before final tightening. In addition to securing joists to pedestals, the M8 Wing Nuts are also used on stainless steel brackets to join I-Plus Beams together, whether end-to-end or at right angles, reinforcing the framework for a strong, durable, and fire-rated decking system

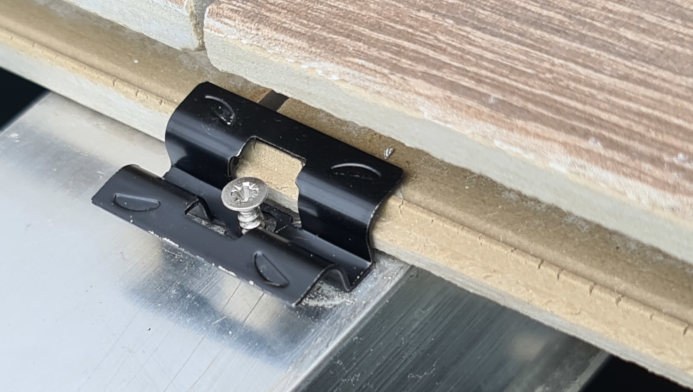

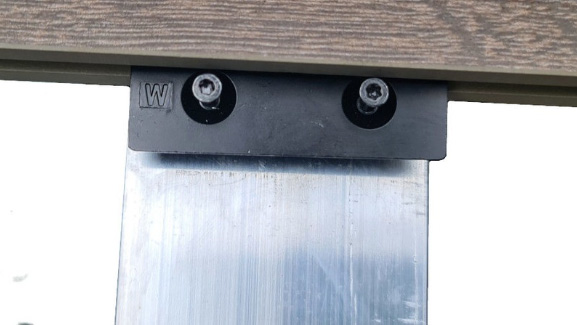

W Clip
Class A Hidden Fixing
The W Clip is a concealed fixing system for deck boards, crafted from electrocoated aluminium to achieve a Class A fire rating, making it a key component of Wallbarn’s fully fire-rated decking system.
Designed and developed by Wallbarn, it features a black finish and seamlessly secures deckboards with a central side-milling profile, ensuring a clean, uninterrupted surface. By locking boards firmly to the aluminium joist, the W Clip prevents movement, loosening, or failure over time, enhancing long-term safety and stability—particularly in public and high-traffic environments.
The 5-6mm gap between the decking boards produced by using the W Clip, is significantly smaller than other systems, creating a clean and beautiful lines. To maintain this refined look, the specially designed screws feature a narrow diameter head, allowing them to fit securely within the gap without scratching the board edges. Made from reinforced steel, the screw heads also prevent furring, ensuring a stunning and luxurious appearance.
