TD Support Pads Project – Honour Lea Road

We have recently been involved in the completion of a project called Honour Lea Road – near the Olympic Stadium featuring the installation of TD support pads, which were used in the construction of a timber decking area on a new build project for Wates Construction.

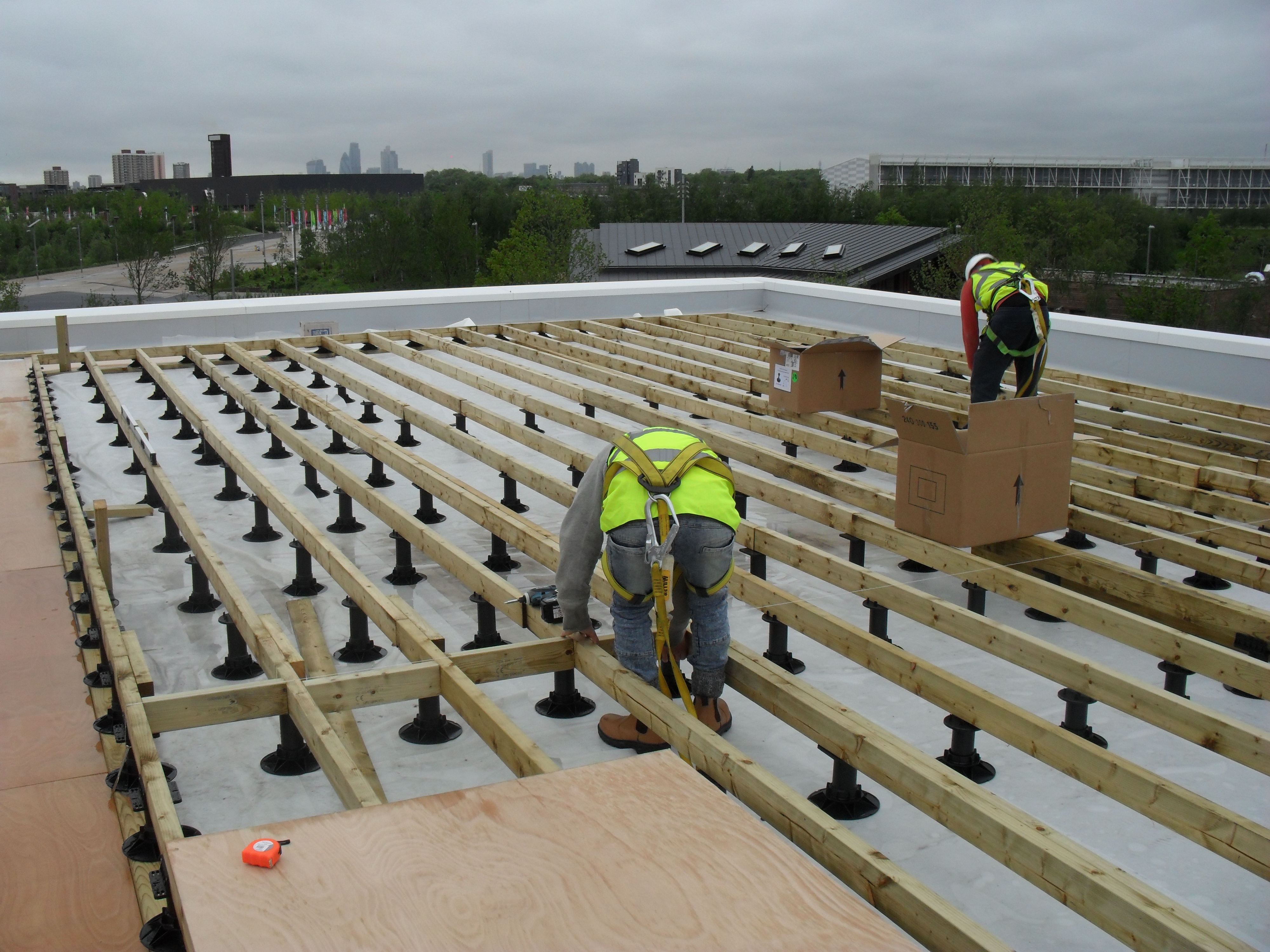

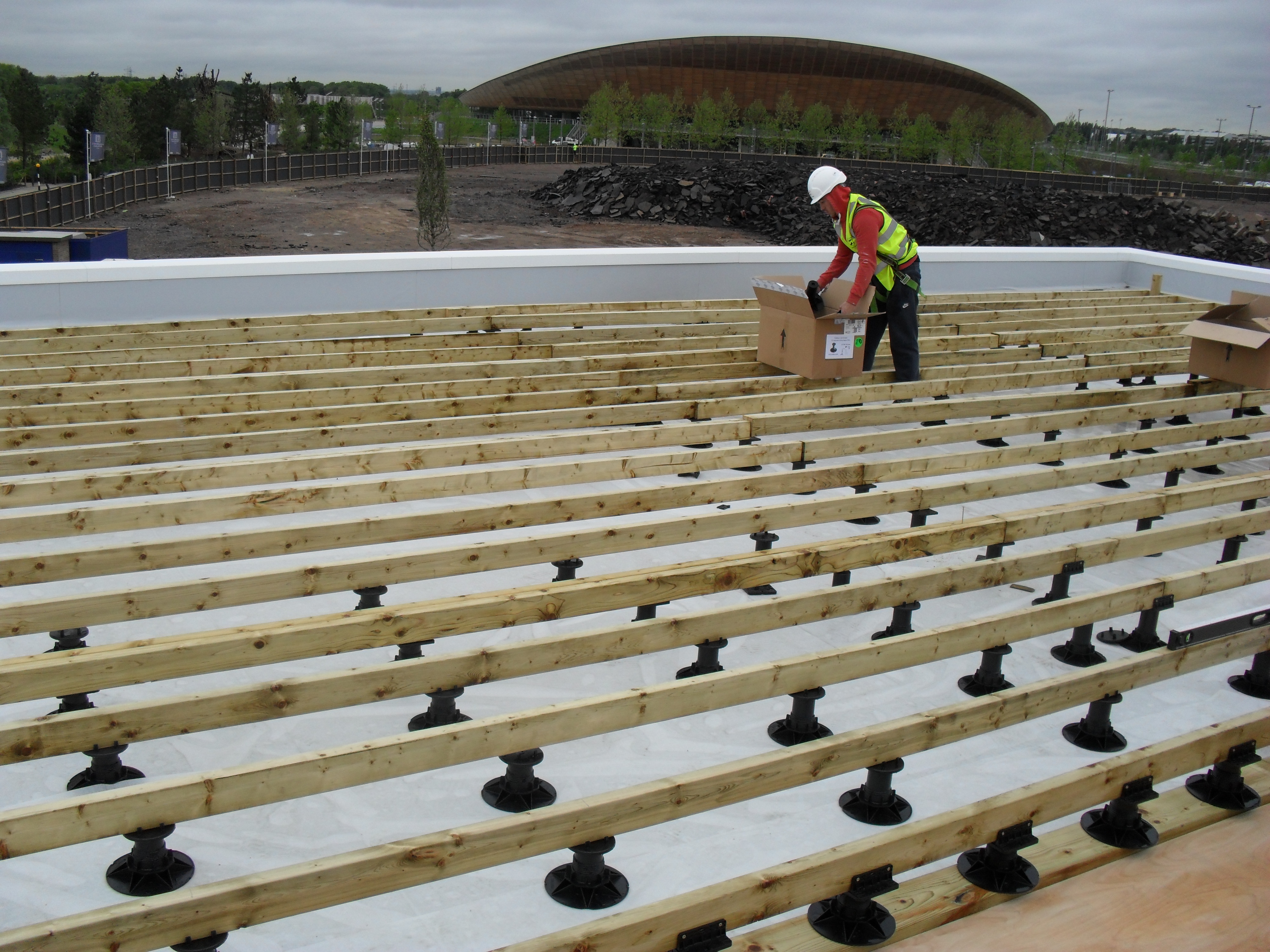

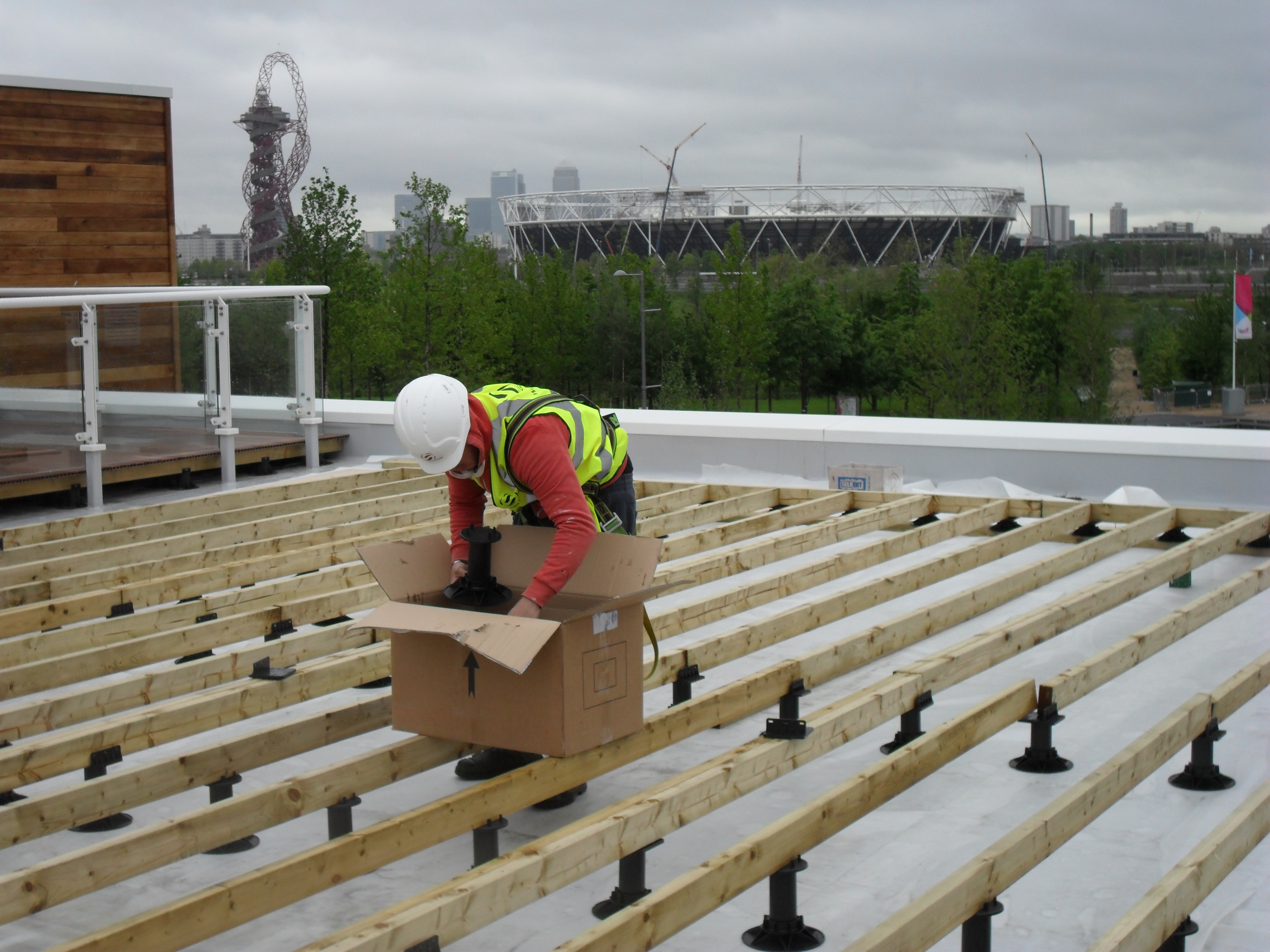

The images below highlight how the roof of the building was designed to have a large terrace to take advantage of the view.

How Were The TD Supports Implemented?

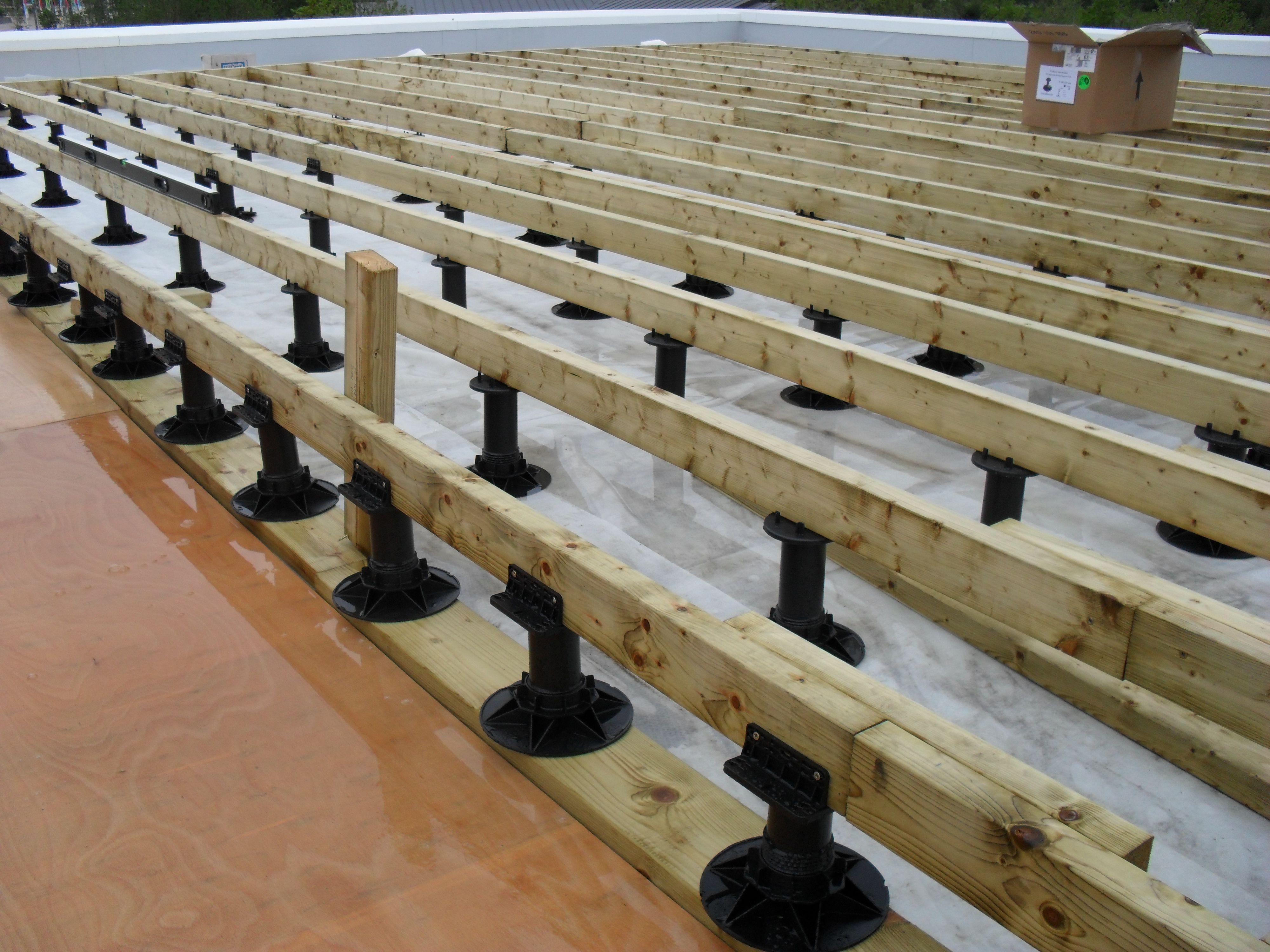

The TD supports were used to raise the timber structures  off the deck to protect the waterproofing membrane from damage. There are also TD Mobile supports in view in some of the pictures.

The client wanted to hold the edge timber joist / batten very securely, so want to screw the support pad into that joist to hold everything together.

More Information About TD Support Pads

These support pads are similar to the ASP range, but manufactured with a set of joist peg fittings placed either 40mm or 60mm apart. We also have a new headpiece with an extra wide joist holder 90mm apart. This has been designed to hold a larger timber joist.

For more information relating to TD support pads, including technical data, please visit the dedicated area on our website by clicking here.
